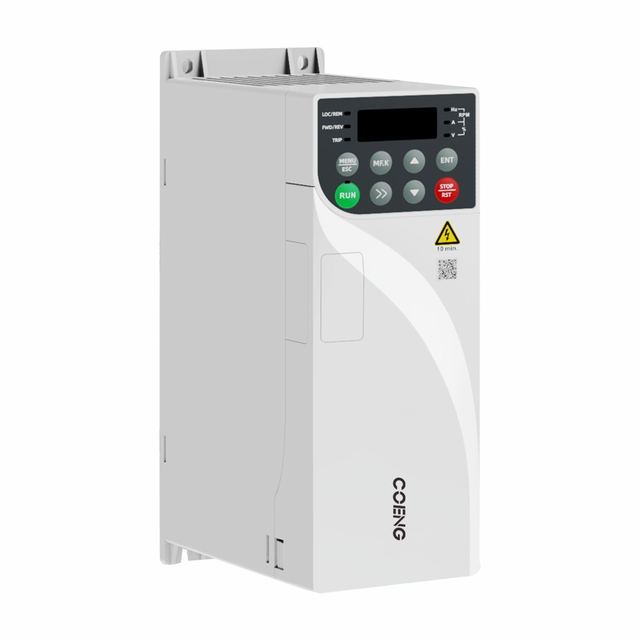

Crane Variable Frequency Drive
Model HV 610-4
Overview
Crane Variable Frequency Drive supplied by SENDEN TECH LIMITED. Key published specifications: Certification CE, IEC; Acceleration And Deceleration Curve Straight Line, S-curve; Overload Capacity 150% 1min/5min, 180% 10s/5min; Starting Torque OLVC: 150% (0.5Hz); CLVC: 200% (0Hz). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE, IEC |
|---|---|
| Acceleration And Deceleration Curve | Straight Line, S-curve |
| Overload Capacity | 150% 1min/5min, 180% 10s/5min |
| Starting Torque | OLVC: 150% (0.5Hz); CLVC: 200% (0Hz) |
| Speed Stability | OLVC: 0.2%; CLVC: 0.1% |
| Acceleration/Deceleration Time | 0.0s～3200.0s; 0.0min～3200.0min |
| Installation Method | Installed In A Cabinet |
| Torque Response | ≤ 5ms, In Vector Control Mode |
| Torque Pulsation | ≤±5%, In Vector Control Mode |
| Input voltage | 380V (-15%) To 480V (+10%) Three-phase |
| Input frequency resolution | Digital Setting: 0.01Hz; Analog Setting: 0.01Hz |
