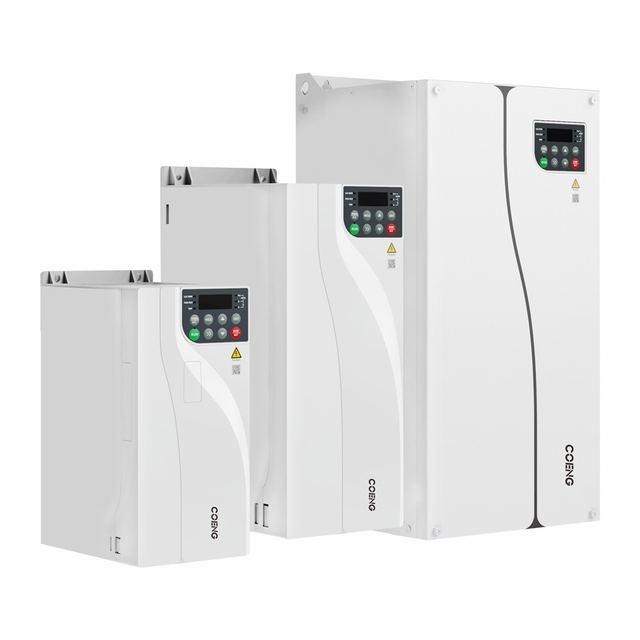

VFD Variable Frequency Drive
Model HV 610-6
Overview
VFD Variable Frequency Drive supplied by SENDEN TECH LIMITED. Key published specifications: Certification CE, IEC; Torque Response ≤ 5ms, In Vector Control Mode; Speed Stability OLVC: 0.2%; CLVC: 0.1%; Input Power Frequency (50Hz/60Hz)±5%. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE, IEC |
|---|---|
| Torque Response | ≤ 5ms, In Vector Control Mode |
| Speed Stability | OLVC: 0.2%; CLVC: 0.1% |
| Input Power Frequency | (50Hz/60Hz)±5% |
| Acceleration And Deceleration Curve | Straight Line, S-curve |
| Analog Input Terminal | AI1、AI2：0V～10V/ 0 (4)mA～20mA |
| Acceleration/deceleration time | 0.0s～3200.0s; 0.0min～3200.0min |
| Protection rating | IP20 |
| Input voltage | 380V (-15%) To 480V (+10%) Three-phase |
| V/F curve | Straight-line Type, Multi-point Type |
| Installation method | Installed In A Cabinet |
