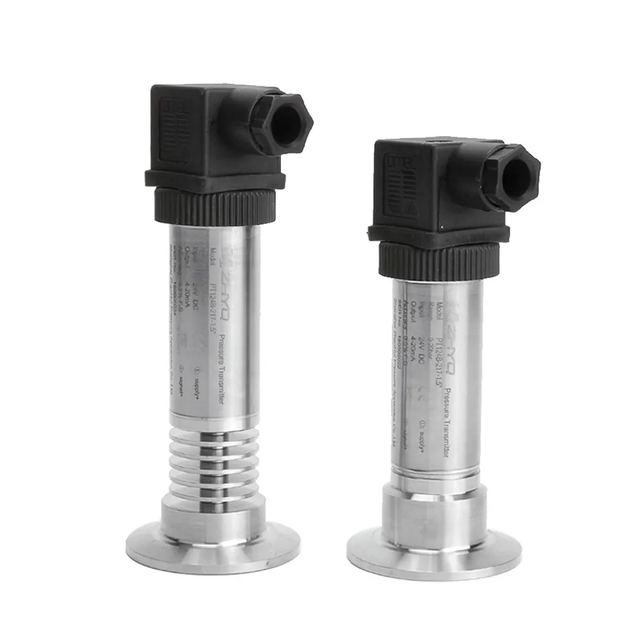

Tri-clamp Pressure Transmitter
Model PT124B-217
Overview
Tri-clamp Pressure Transmitter supplied by Shanghai Zhaohui Pressure Apparstus Co.,Ltd. Key published specifications: Pressure range -0.1～0～3MPa; Overload 150%FS; Comprehensive accuracy 0.1%FS ; 0.25%FS ; 0.5%FS; Long term stability ±0.1%FS/year. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Pressure range | -0.1～0～3MPa |
|---|---|
| Overload | 150%FS |
| Comprehensive accuracy | 0.1%FS ; 0.25%FS ; 0.5%FS |
| Long term stability | ±0.1%FS/year |
| Non-linearity | 0.1%FS |
| Repeatability | 0.1%FS |
| Power supply | 24(12~36V)DC |
| Operating temperature | ‐20～85℃ (Typical type); ‐20～125℃(Medium to high temperature type) |
| Wetted material | Hastelloy C-276;SS316L;Tantalum |
| Housing material | SS304 |
| Protection grade | IP65 |
| Process connection | 1.5 inch tri-clamp ; 2 inch tri-clamp |
