Overview

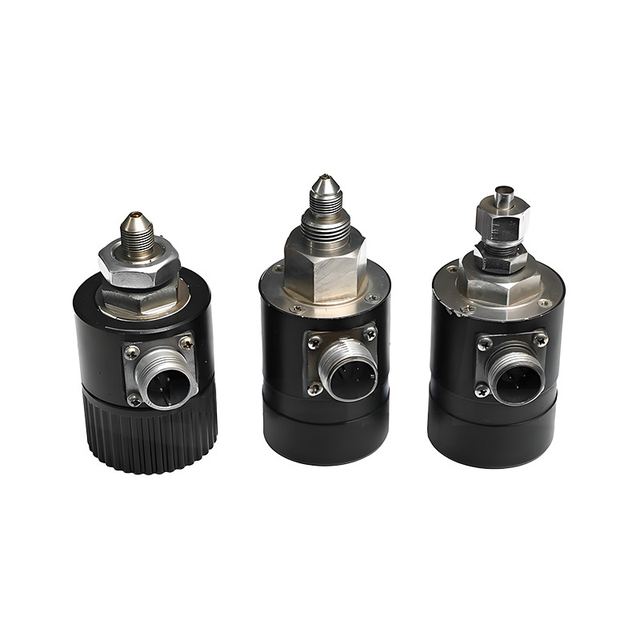

HT-YZ-10 and HT14B Pressure Transmitters supplied by Chongqing Hengtairail Equipment Co.,Ltd. Listed under Other Railway Products. Key published specifications: Operating Temperature -25°C To +70°C; Storage Temperature -40°C To +85°C; Measurement Range 0–1000 KPa; Output Signal 0–2V, 0–5V, 0–10mA, 4–20mA. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Operating Temperature	-25°C To +70°C
Storage Temperature	-40°C To +85°C
Measurement Range	0–1000 KPa
Output Signal	0–2V, 0–5V, 0–10mA, 4–20mA
Transmission Mode	Three-wire Or Four-wire
Power Supply	15VDC ±20%, 24VDC ±20%
Current Consumption	< 15 MA
Process Connection	M12×1.0 (optional)
