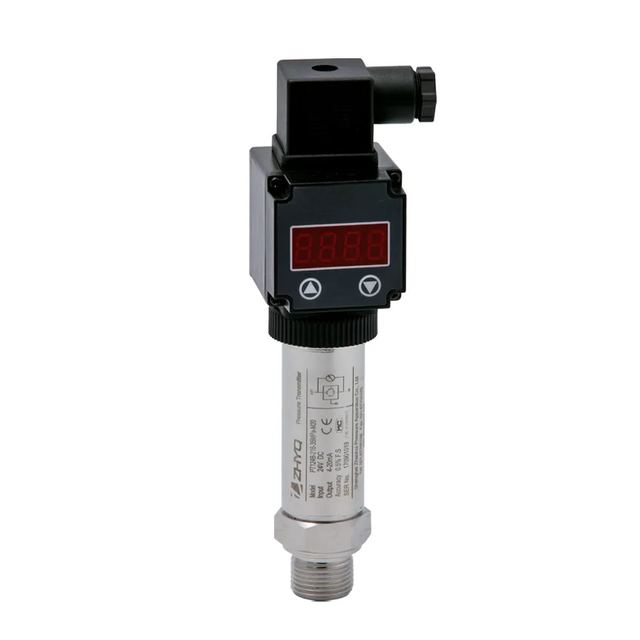

On-site Display Pressure Transmitter
Model PT124B-216
Overview
On-site Display Pressure Transmitter supplied by Shanghai Zhaohui Pressure Apparstus Co.,Ltd. Key published specifications: Overload 150%FS; Comprehensive accuracy 0.1%FS ; 0.25%FS ; 0.5%FS ;1%FS; Long term stability ±0.1%FS/year; Non-linearity 0.1%FS. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Overload | 150%FS |
|---|---|
| Comprehensive accuracy | 0.1%FS ; 0.25%FS ; 0.5%FS ;1%FS |
| Long term stability | ±0.1%FS/year |
| Non-linearity | 0.1%FS |
| Repeatability | 0.1%FS |
| Power supply | 24(12~36V)DC |
| Wetted material | SS304;SS316L(Customizable) |
| Housing material | SS304 |
| Protection grade | IP65 |
| Electrical Connection | Hirschmann A type |
