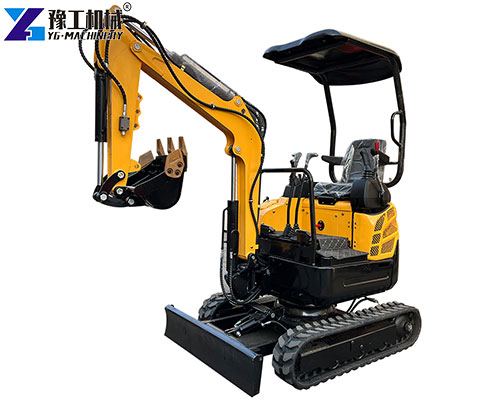

Tiny Mini Excavator
Model YG10-8
Overview
Tiny Mini Excavator supplied by YG Machinery Hub. Listed under Excavators. Key published specifications: Operating Weight 1000kg; Digging bucket capacity 0.025cbm/100kg; Bucket width 340mm; Rated power 10.2 / 7kw/2200r/min. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Operating Weight | 1000kg |
|---|---|
| Digging bucket capacity | 0.025cbm/100kg |
| Bucket width | 340mm |
| Rated power | 10.2 / 7kw/2200r/min |
| Displacement | 0.499 L |
| Travel speed | 1.5km/h |
| Overall dimension( LxWxH) | 1877x896x1990 mm |
| Wheelbase | 770 mm |
| The total length of the track | 960mm |
| Platform ground clearance | 376 mm |
| Platform back-turning radius | 664 mm |
| Chassis width | 896 mm |
| Track width | 180 mm |
| Chassis ground clearance | 132 mm |
| Track height | 320 mm |
| Max. Digging depth | 1650 mm |
| Max. Vertical digging depth | 1376 mm |
| Max. Digging height | 2365 mm |
| Max. Dumping height | 1655 mm |
| Max. Digging radius on the ground | 2560 mm |
| Min. Rotation radius | 1200 mm |
| Max. Digging depth of bulldozer blade | 170 mm |
