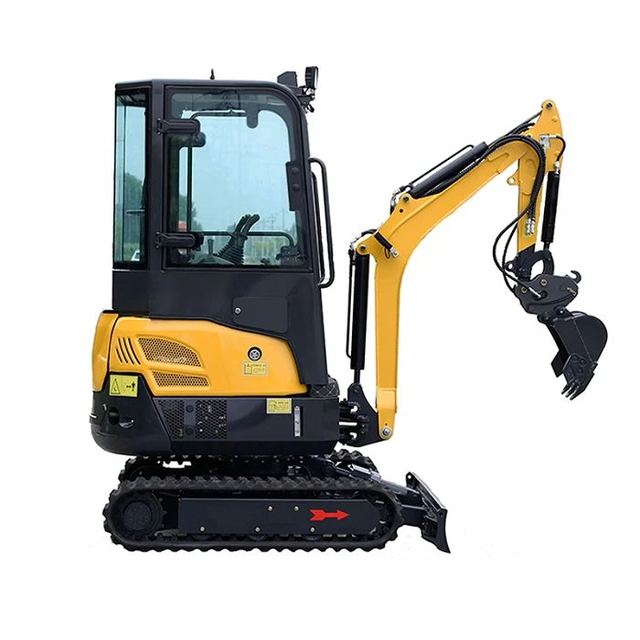

Excavator Mini
Overview
Shandong Infront Machinery Co., Ltd in Jining, Shandong lists Excavator Mini under Mini Excavators. The listing gives total weight 2050kg, standard bucket capacity 0.045m3 and rated power 14Kw/Kuboat.
Technical specifications
| Total weight | 2050kg |
|---|---|
| Standard bucket capacity | 0.045m3 |
| Rated power | 14Kw/Kuboat |
| Track gauge | 950mm |
| Total length | 3850mm |
| Platform ground clearance | 458mm |
| Ground pressure | 38Kp |
| Track width | 230mm |
| Track height | 320mm |
| Track length | 1900mm |
| Total height | 2128mm |
| Max.ground digging radius | 4045mm |
| Max.digging depth | 2150mm |
| Max.digging height | 3556mm |
| Max.unloading height | 2452mm |
| Main pressure | 18Mpa |
| Min.radius of gyration | 1190mm |
| Dozer blade maximum lifting height | 325mm |
| Dozer blade maximum earthmoving height | 175mm |
