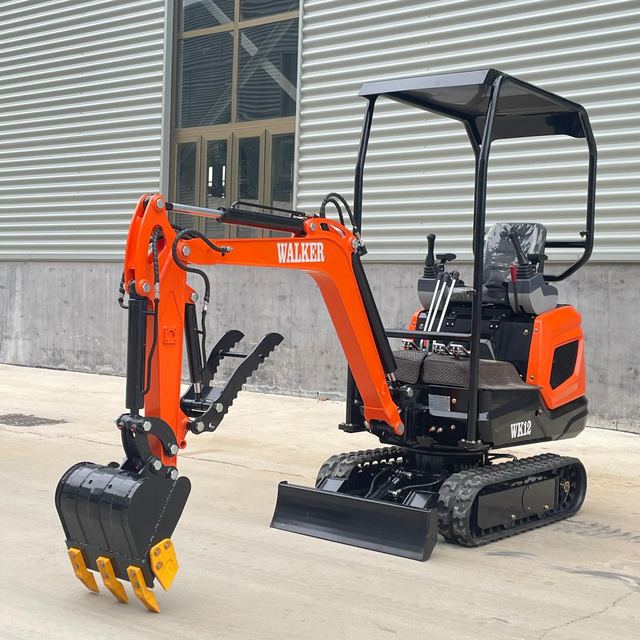

1.2 Tonne Mini Excavator
Model WK12
Overview
1.2 Tonne Mini Excavator, listed under Mini Excavators by SHANDONG GONGWO MACHINERY CO., LTD in Laizhou, Shandong. The listing gives operating weight 1200kg, digging bucket capacity 0.018m³ and bucket width 400mm.
Technical specifications
| Operating weight | 1200kg |
|---|---|
| Digging bucket capacity | 0.018m³ |
| Bucket width | 400mm |
| Engine | KOOP192 |
| Heat dissipation mode | Air Cool |
| Rated power | 7KW |
| Optional engine | Kubota D722,10.2kw |
| Travel speed | 2.1km/h |
| Chassis width | 934mm |
| Track width | 180mm |
| Minimum ground clearance | 197mm |
| Maximum digging height | 2283mm |
| Maximum unloading height | 1698mm |
| Maximum excavation radius | 2507mm |
| Maximum digging depth | 1436mm |
| Vertical digging depth | 1436mm |
| Minimum radius of tum | 1371mm |
| Turning speed | 3000rpm |
| Working pressure | 16MPa |
