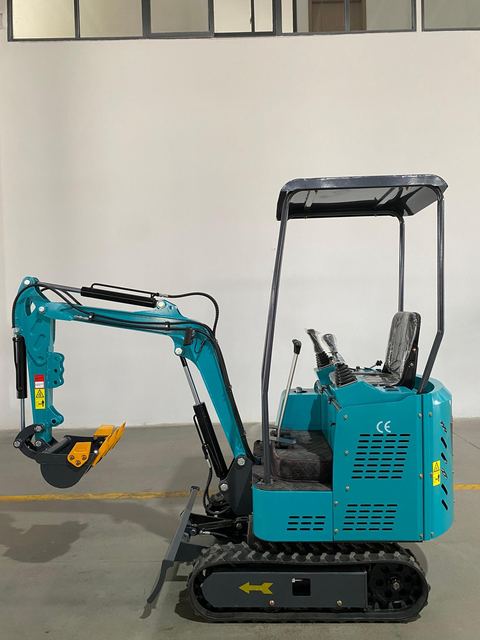

1.5-ton mini excavator

Model WK15

1.5-ton mini excavator

Overview

SHANDONG GONGWO MACHINERY CO., LTD in Laizhou, Shandong lists 1.5-ton mini excavator under Mini Excavators. Operating weight 1500kg, digging bucket capacity 0.03m³ and bucket width 400mm are among the specifications published.

Technical specifications

Operating weight1500kg
Digging bucket capacity0.03m³
Bucket width400mm
EngineKUBOTA
Other enginesBriggs & Stratton gasoline engine，KOOP
Heat dissipation modeThree cylinders, water cooled
Rated power10.2kW
Travel speed2.5km/h
Overall dimension (L W H)2450 1100 2200mm
Total length of track1230mm
Platform back turning radius740mm
Chassis width1050mm
Track width180mm
Chassis ground clearance135mm
Max. Digging depth1750mm
Max. Digging height2650mm
Max. Dumping height1850mm
Max. Digging radius on ground2850mm
Minimum rotation radius1330mm
