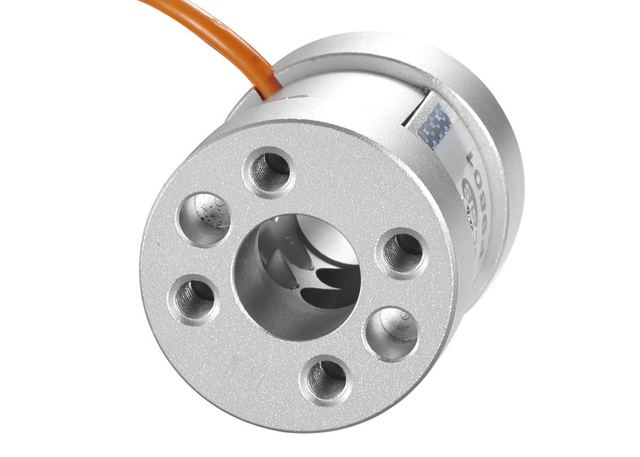

Strain Gauge Force Sensor Load Cell Transducer Column Load Sensors
Model F9801
Overview
Strain Gauge Force Sensor Load Cell Transducer Column Load Sensors, listed under Strain Sensors by Shenzhen) Sensors Co., Ltd in Shenzhen, Guangdong. Type Column, material Aluminum Alloy and capacity 1~150NM are among the specifications published.
Technical specifications
| Type | Column |
|---|---|
| Material | Aluminum Alloy |
| Capacity | 1~150NM |
| Oem/Odm | Acceptable |
| Protection Class | IP65 |
| Rated output | 2.0±10%mV/V |
| Zero balance | ±2% F.S. |
| Non-linearity | 0.5% F.S. |
| Hysteresis | 0.25% F.S. |
| Repeatability | 0.1% F.S. |
| Creep (30min) | 0.5% F.S. |
| Temp. effect on output | 0.05% F.S. / 10ºC |
| Temp. effect on zero | 0.05% F.S. / 10ºC |
| Insulation | ≥5000MΩ/ 100VDC |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated temp. range | - 10~60ºC |
| Operation temp. range | - 20~80ºC |
| Safe overload | 120% F.S. |
| Ultimate overload | 150% F.S. |
| Cable size | Ø3×3000mm |
| Standard | carton |
| Model | F9801 |
| Technical parameters | Specifications |
| Input | Red(+) Black(-); |
