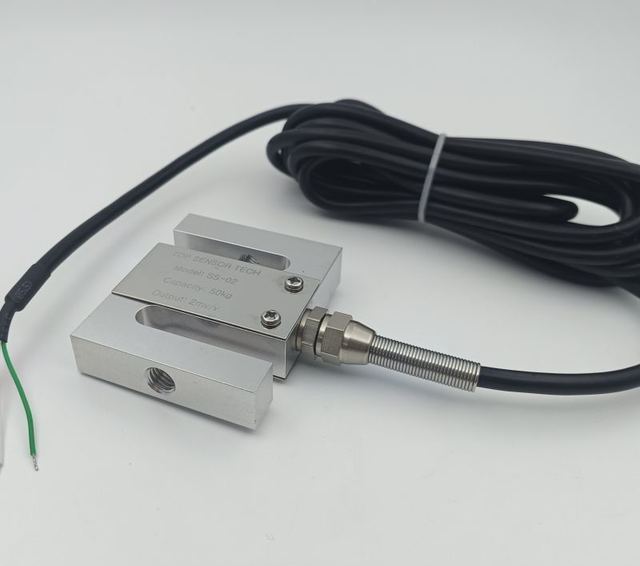

1~50kg Alloy Aluminum S-Beam Load Cell For Accurate Weighing IP67 Crane Scale Strain Gauge Sensor

Model SS-02

1~50kg Alloy Aluminum S-Beam Load Cell For Accurate Weighing IP67 Crane Scale Strain Gauge Sensor

Overview

Sensor Technology Co.Ltd in Dongguan, Guangdong lists 1~50kg Alloy Aluminum S-Beam Load Cell For Accurate Weighing IP67 Crane Scale Strain Gauge Sensor under Strain Sensors. Sensitivity 2.0±10%mV/V, maximum excitation 15V and thermal effects on output ±0.001% Full Scale/°F are among the specifications published.

Technical specifications

Sensitivity2.0±10%mV/V
Maximum Excitation15V
Thermal Effects On Output±0.001% Full Scale/°F
StyleS Beam
MaterialAlloy Aluminum
Capacity10, 20, 50, 100, 200KG
Weight0.5kg
Water ProtectionIP67
Cable Sizeφ5.0x3000mm
Technical ParametersSensitivity
