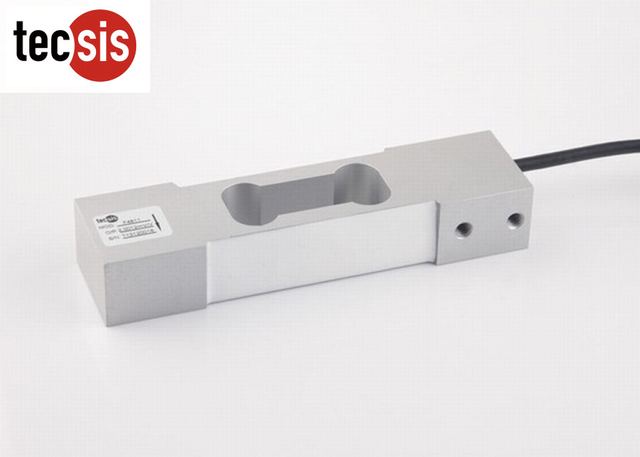

Electronic Scale Force Sensor Load Cell Strain Gauge Weight Sensor
Model F4811
Overview
Shenzhen) Sensors Co., Ltd in Shenzhen, Guangdong lists Electronic Scale Force Sensor Load Cell Strain Gauge Weight Sensor under Strain Sensors. Type Single Point Load Cell, material Aluminum Alloy and capacity 3kg~100kg are among the specifications published.
Technical specifications
| Type | Single Point Load Cell |
|---|---|
| Material | Aluminum Alloy |
| Capacity | 3kg~100kg |
| Oem/Odm | Acceptable |
| Protection Class | IP65 |
| Rated output | 2.0±10%mV/V |
| Zero balance | ±2% F.S. |
| Non-linearity | 0.02% F.S. |
| Hysteresis | 0.02% F.S. |
| Repeatability | 0.02% F.S. |
| Creep (30min) | 0.02% F.S. |
| Temp. effect on output | 0.025% F.S. / 10ºC |
| Temp. effect on zero | 0.025% F.S. / 10ºC |
| Insulation | ≥5000MΩ/ 100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 10V |
| Compensated temp. range | - 10~40ºC |
| Operation temp. range | - 20~60ºC |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Cable size | Ø5×1500 mm |
| Platform size | 250×300mm |
| Standard | carton |
| Model | F4811 |
| Technical parameters | Specifications |
