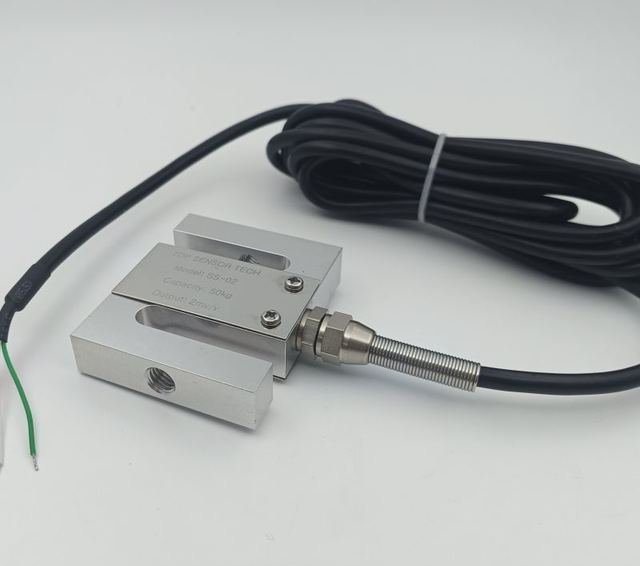

S-beam Temperature Compensated Screw Mount Load Cell Strain Gauge Alloy Aluminum Weighing Sensor
Model SS-02
Overview
S-beam Temperature Compensated Screw Mount Load Cell Strain Gauge Alloy Aluminum Weighing Sensor supplied by Sensor Technology Co.Ltd. Key published specifications: Repeatability ≤0.02%F.S.; Material Alloy Steel Or Alloy Aluminum; Linearity 0.2 %FS; Temperature Effect On Zero ≤0.02%F.S./10℃. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Repeatability | ≤0.02%F.S. |
|---|---|
| Material | Alloy Steel Or Alloy Aluminum |
| Linearity | 0.2 %FS |
| Temperature Effect On Zero | ≤0.02%F.S./10℃ |
| Insulation Resistance | ≥5000 M Ω(100VDC) |
| Mounting Type | Screw Mount |
| Hysteresis | ≤0.02%F.S. |
| Capacity | 10, 20, 50, 100, 200KG |
| Technical Parameters | Repeatability |
