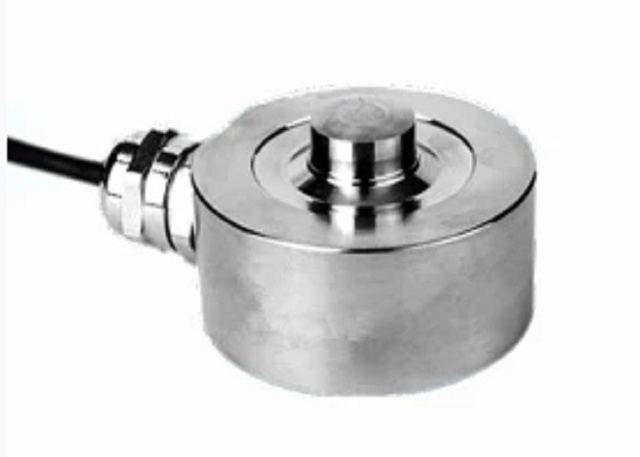

Stainless Steel Mini Force Sensor 0.2-2t
Model HZFS-016
Overview
Stainless Steel Mini Force Sensor 0.2-2t supplied by Innovation Electronic Co.,Ltd. Listed under Load Cells. Key published specifications: Rated Capacities(Emax) 0.2-2t; Recommended Excitation 5-10V; Material Stainless Steel; Application Lamination Machine. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Rated Capacities(Emax) | 0.2-2t |
|---|---|
| Recommended Excitation | 5-10V |
| Material | Stainless Steel |
| Application | Lamination Machine |
| Capacity | 0.2-2t |
| Rated Output | 1.5-2.0mV/V |
| Zero Balance | ±2% F.S. |
| Insulation | ≥5000M Ω/100VDC |
| Non-linearity | 0.5%F.S. |
| Hysteresis | 0.5%F.S. |
| Maximum Excitation | 15V |
| Repeatability | 0.5%F.S. |
| Compensated Temp Range | -10~60 ºC |
| Creep (30min) | 0.05% F.S. |
| Operating Temp Range | -20~80 ºC |
| Temp Effect on Output | 0.05%F.S./10 ºC |
| Temp Effect on Zero | 0.05%F.S./10 ºC |
| Cable Size | φ4x3m |
| Load Cell Parameter | Capacity |
| Type | Mini Load Cell |
| output | 1.5-2.0mV/V |
