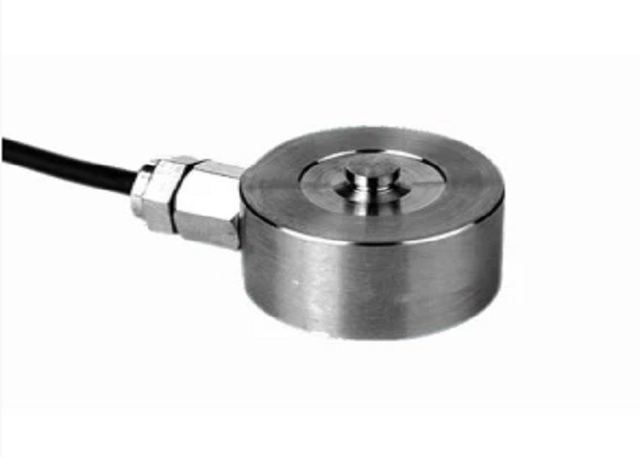

Stainless Steel HZFS-017 Mini Force Sensor 50N~120KN
Model HZFS-017
Overview
Stainless Steel HZFS-017 Mini Force Sensor 50N~120KN supplied by Innovation Electronic Co.,Ltd. Listed under Load Cells. Key published specifications: Capacity 50N~120KN; Material Stainless Steel; Rated Output 1.0-1.5mV/V; Zero Balance ± 2%F.S.. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Capacity | 50N~120KN |
|---|---|
| Material | Stainless Steel |
| Rated Output | 1.0-1.5mV/V |
| Zero Balance | ± 2%F.S. |
| Insulation | ≥5000MΩ/100VDC |
| Non-linearity | 0.5%F.S. |
| Recommended Excitation | 5-10V |
| Hysteresis | 0.5%F.S. |
| Maximum Excitation | 15V |
| Repeatability | 0.5%F.S. |
| Compensated Temp Range | -10~60 ºC |
| Creep (30min) | 0.1%F.S. |
| Operating Temp Range | -20~80 ºC |
| Temp Effect on Output | 0.05%F.S./10 ºC |
| Temp Effect on Zero | 0.05%F.S./10 ºC |
| Cable Size | φ(2-4) x 3m |
| Rated Capacities(Emax) | 50N~120KN |
| Model No. | HZFS-017 |
| Type | Mini Load Cell |
| Application | Testing Instruments |
| output | 1.5-2.0mV/V |
