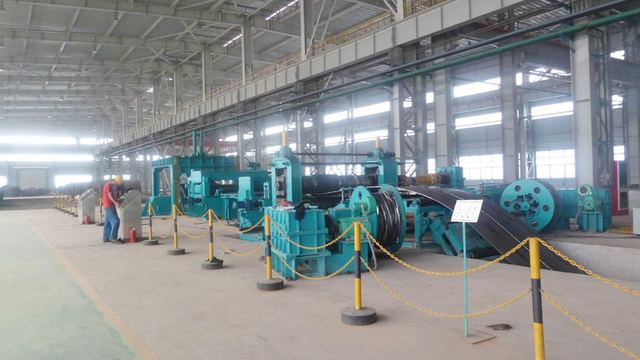

Slitting Line
Overview
Slitting Line supplied by Hangzhou Roll Forming Technology Co.,Ltd. Key published specifications: Suitable material Aluminum/Hot rolled/cold rolled/galvanized/stainless steel coils; Material thickness 0.3-25 mm(as requests); Max. material width 2000 mm; Max. production speed 0-60, 100, 200 m/min(optional). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Suitable material | Aluminum/Hot rolled/cold rolled/galvanized/stainless steel coils |
|---|---|
| Material thickness | 0.3-25 mm(as requests) |
| Max. material width | 2000 mm |
| Max. production speed | 0-60, 100, 200 m/min(optional) |
| Max. outer diameter | 1600 mm |
| Coil inner diameter (for uncoiler) | 470-520 mm; 480-630 mm |
| Coil inner diameter (for recoiler) | 508 mm |
| Max. coil weight | 20t |
| Min. width of strip | 30mm |
| Tolerance of width after being slitted | +-0.1 mm |
| The slitting burr | +-0.02 mm |
| Straightness | 1 mm/m |
| Total capacity | approx 130 kW |
| Power supply | 220V/380V/415V/460V, 50/60Hz, 3P (as requests) |
| Dimension of Steel Slitting Line | 35 m x 7 m x 3 m(approx) |
| Machine Condition | Fully New, A Grade quality |
| Operator needed | 1-2 persons |
| Equipment Weight | About 25 t |
| Dimension | (L*W*H) about 35*7*3m |
| Loading Size | Normally need 2-3x 40' (+ 1x 20') container |
| Equipment Color | Normally Blue/White, or as requests |
