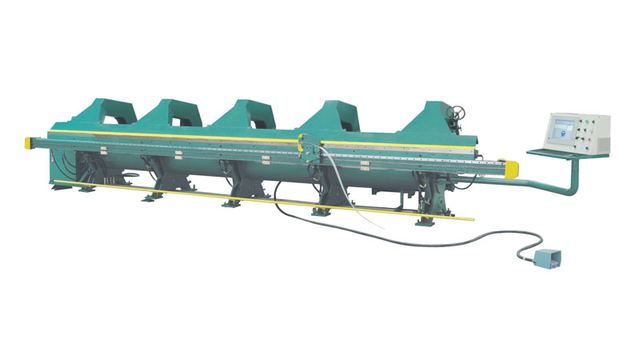

CNC Folder
Overview
CNC Folder supplied by Hangzhou Roll Forming Technology Co.,Ltd. Key published specifications: Max. Folding length 6500mm/8000mm/10000mm (for choice); Throat depth 800mm; Max. Folding angle 125 degrees; Weight 5.400kg. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Max. Folding length | 6500mm/8000mm/10000mm (for choice) |
|---|---|
| Throat depth | 800mm |
| Max. Folding angle | 125 degrees |
| Weight | 5.400kg |
| Slitting speed | About 800mm/sec |
| Slitting mold | Rotary slitter |
| Control system | PC with 12’ LCD |
| Machine body | 1pc |
| Clamp unit | 1set |
| Folding equipment | 1set |
| Digital-control backstop | 1set |
| Slitting system | 1set |
| Work piece supporting equipment | 1set |
| Hydraulic system | 1set |
| PLC Control system | 1pc |
| Machine Condition | Fully New, A Grade quality |
| Operator Needed | 1 person |
| Power Supply | 220V/380V/415V/460V, 50/60Hz, 3P (as requests) |
| Equipment Weight | About 8t |
| Dimension | (L*W*H) about 11*3*2m |
| Loading Size | Normally need 1x 40' container |
| Equipment Color | Normally Blue/White, or as requests |
