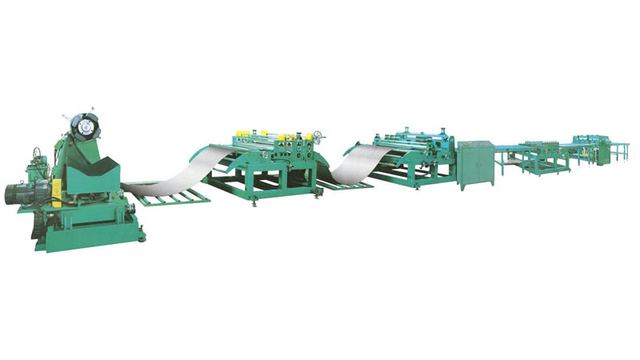

Cut To Length Line
Overview
Cut To Length Line supplied by Hangzhou Roll Forming Technology Co.,Ltd. Key published specifications: Material thickness 0.3-25 mm(as requests); Max. material width 500-2000 mm; Line speed 10 – 50 m/min; Shearing speed 20－23 cuts/min.（length: 2000 mm）. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Material thickness | 0.3-25 mm(as requests) |
|---|---|
| Max. material width | 500-2000 mm |
| Line speed | 10 – 50 m/min |
| Shearing speed | 20－23 cuts/min.（length: 2000 mm） |
| Shearing blade material | Cr12MoV |
| Hardness of shearing blade | HRC 58 – 60 |
| Machine Condition | Fully New, A Grade quality |
| Operator Needed | 1-2 persons |
| Power Supply | 220V/380V/415V/460V, 50/60Hz, 3P (as requests) |
| Equipment Weight | About 25 t |
| Dimension | (L*W*H) about 35*7*3m |
| Loading Size | Normally need 2-3x 40' (+ 1x 20') container |
| Equipment Color | Normally Blue/White, or as requests |
| 20－23 cuts/min.（length | 2000 mm） |
