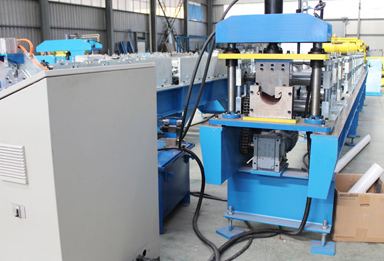

Gutter Roll Former
Overview
Gutter Roll Former supplied by Hangzhou Roll Forming Technology Co.,Ltd. Key published specifications: Material type Color coated Steel, Aluminum sheet; Thickness 0.3-0.6(mm); Yield Strength 230-300/350 (MPa) optional; Width 461 (mm) as profile requests. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Material type | Color coated Steel, Aluminum sheet |
|---|---|
| Thickness | 0.3-0.6(mm) |
| Yield Strength | 230-300/350 (MPa) optional |
| Width | 461 (mm) as profile requests |
| Decoiler | 2T/3T/5T Motor/hydraulic motor/passive (optional) |
| Filming covering device | optional |
| Front shear | optional |
| Lubricating device | no need |
| Roll forming system | 15/20/30 m/min |
| Safety cover | optional |
| Post cutting | Motor/hydraulic (optional) |
| Output System | Manual supporter/ Automatic Stacker (optional) |
| Stack Master | (Output direction) Lateral/Longitudinal (optional) |
| Machine Condition | Fully New, A Grade quality |
| Operator | needed 1 person |
| Power Supply | 220V/380V/415V/460V, 50/60Hz, 3P (as requests) |
| Equipment Weight | About 7t |
| Dimension | (L*W*H) about 20*2.5*2m |
| Equipment Color | Normally Blue/White, or as requests; |
