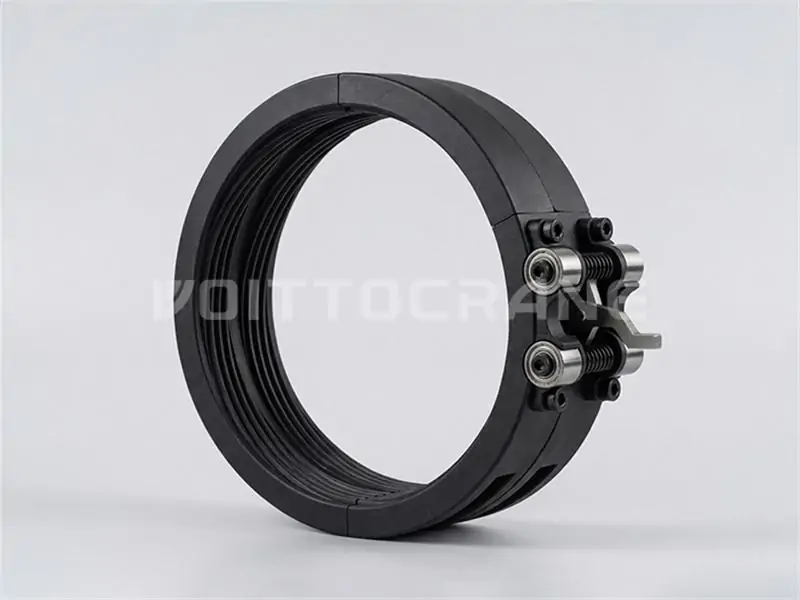

Rope Guide
Overview
Rope Guide, from Voitto Crane in Henan. Model Cast Iron, ductile iron Nylon and material grade ASTM Class 30/35 are among the specifications published.
Technical specifications
| Model | Cast Iron |
|---|---|
| Ductile Iron | Nylon |
| Material Grade | ASTM Class 30/35 |
| Astm A536 65-45-12 | Nylon 6/6 PA66 |
| Tensile Strength | 30-35 kPSI |
| 60-90 kPSI | 11-13 kPSI |
| Rope Diameter Range | 6-50mm |
| Operating Temperature | -10°C to 80°C |
| 20°C to 150°C | -40°C to 90°C |
| Surface Hardness | HB 160-220 |
| Hb 180-280 | Shore D 75-85 |
| Weight Per Unit | 0.5-8 kg |
| Service Life | 5-8 years |
| 10-15 years | 3-5 years |
| Duty Class | M3-M5 |
| Type | Cast Iron/Ductile Iron/Nylon |
| Rated Capacity | 5 ~ 50 ton |
| Rated power | 0.18 kW ~ 200 kW |
| Rated torque | 190 N·m ~ 18,000 N·m |
