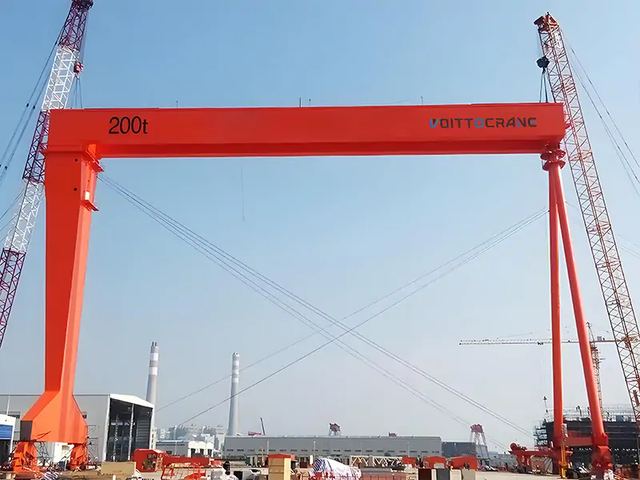

Shipyard Gantry Crane
Overview
Shipyard Gantry Crane supplied by Voitto Crane. Listed under Gantry Cranes. Key published specifications: Lifting Capacity 100 ton ~ 2000 ton or customized; Span 55 ~ 190 m or customized; Lifting Height 29.5 ~ 78/15 ~ 60 m or customized; Hoisting Speed 3.5 ~ 8.8 m/min. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Lifting Capacity | 100 ton ~ 2000 ton or customized |
|---|---|
| Span | 55 ~ 190 m or customized |
| Lifting Height | 29.5 ~ 78/15 ~ 60 m or customized |
| Hoisting Speed | 3.5 ~ 8.8 m/min |
| Crane Traveling Speed | 25 ~ 35 m/min |
| Working Temperature | -20 ~ 40℃ or customized |
| Work Duty | A7 ~ A8 |
| Protection Class | IP54/ IP55/ IP65 |
