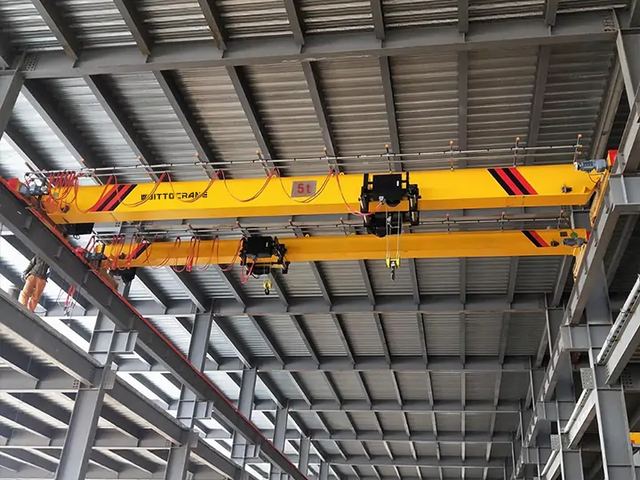

5 Ton Overhead Crane
Overview
5 Ton Overhead Crane supplied by Voitto Crane. Listed under Overhead Cranes. Key published specifications: Lifting Capacity 5 tons (5,000 kg); Span Length 7 m – 31 m (standard); Ambient Temperature -20 °C to +40 °C; Structural Standard GB/T 14405, FEM 1.001. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Lifting Capacity | 5 tons (5,000 kg) |
|---|---|
| Span Length | 7 m – 31 m (standard) |
| Ambient Temperature | -20 °C to +40 °C |
| Structural Standard | GB/T 14405, FEM 1.001 |
| Electrical Standard | IEC 60204-32, EN 13557 |
| Safety / Quality | CE (2006/42/EC), ISO 9001:2015 |
| 5 Ton European Overhead Crane | 7.5-28.5 m |
| 5 Ton Underhung Bridge Crane | 7.5-28.5 m |
| 5 Ton Double Girder Overhead Crane | 10.5-31.5 m |
| 5 Ton Explosion-proof EOT Crane | 7.5-28.5 m |
| 5 Ton Grab Overhead Travelling Crane | 10.5-31.5 m |
| Lifting Height | 6, 10, 16 m |
| Load Capacity | 5 tons |
| Control Options | Remote / Cabin control |
| Lifting Speed | Customizable |
| Power Supply | 3 Phase A.C. 50Hz 380V |
