Overview

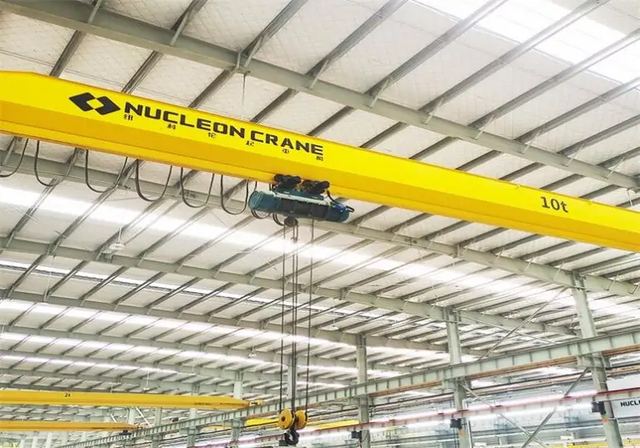

10 Ton Overhead Crane supplied by Nucleon Crane. Listed under Overhead Cranes. Key published specifications: End Trucks Double-flange wheels (HB300–380), polyurethane end buffers; Hook Assembly Forged alloy steel, ISO 7596; safety latch standard; Control Station 8-button pendant or 12-channel wireless remote (100 m); Protection Relays Phase-failure & phase-sequence; emergency stop. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

End Trucks	Double-flange wheels (HB300–380), polyurethane end buffers
Hook Assembly	Forged alloy steel, ISO 7596; safety latch standard
Control Station	8-button pendant or 12-channel wireless remote (100 m)
Protection Relays	Phase-failure & phase-sequence; emergency stop
Rated Capacity	1–10 Tonnes (customisable)
Span	7–31.5 m
Lifting Height	6–18 m (customisable)
Lifting Speed	6–30 m/min
Trolley Travel Speed	20–40 m/min
Bridge Travel Speed	20–60 m/min
Working Class	A3–A5 (FEM / ISO 4301)
Power Supply	380V / 50Hz (customisable)
Control Method	Pendant / Wireless Remote
Compliance	CE / ISO 9001 / GB/T 14405
