Overview

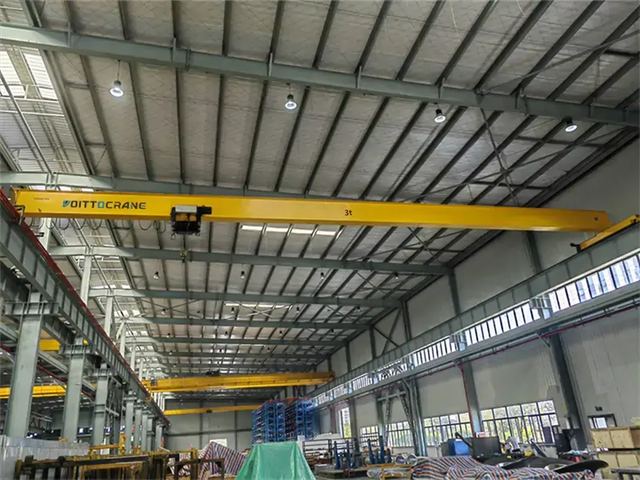

3 Ton Overhead Crane supplied by Voitto Crane. Listed under Overhead Cranes. Key published specifications: Rated Capacity (SWL) 3 t; Work Duty Classification A3 / A4 (FEM 1.001 Group 3–4); Hoist Speed Standard 4/1 m/min (2-speed) or VFD stepless; Trolley Travel Speed 20 m/min (single-girder); 20/5 m/min (double-girder). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Rated Capacity (SWL)	3 t
Work Duty Classification	A3 / A4 (FEM 1.001 Group 3–4)
Hoist Speed	Standard 4/1 m/min (2-speed) or VFD stepless
Trolley Travel Speed	20 m/min (single-girder); 20/5 m/min (double-girder)
Work Environment Temp.	-20 °C to +40 °C
Relative Humidity	≤ 85 % (non-condensing)
Hoist Motor Insulation	Class F (IEC 60034-1); IP55 enclosure (IEC 60034-5)
Lifting Capacity	3 tons
Lifting Height	6, 10, 16, 20, 24 m
Load Capacity	2 ton
