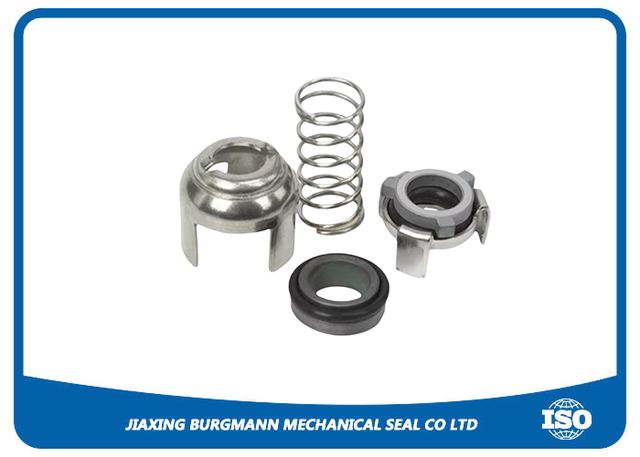

Replace Grundfos Seal 12mm Tc
Model A/B
Overview
Replace Grundfos Seal 12mm Tc supplied by Jiaxing Burgmann Mechanical Seal Co., Ltd. Listed under Mechanical Seals. Key published specifications: Size 12&16mm; Pressure Up To 3Mpa; Temperature -10°C To +180°C; Speeds 15m/s. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Size | 12&16mm |
|---|---|
| Pressure | Up To 3Mpa |
| Temperature | -10°C To +180°C |
| Speeds | 15m/s |
| Metal Parts | SS304, SS316, Titan, Hast C, 904L |
| Shaft Diameter | 12 & 16mm |
| Sliding Velocity | 15 m/s |
| O-Ring | EPDM, NBR, AFLAS, Kalrez, PTFE |
| Spring and Metal Parts | SUS304, SUS316, Titan, Hast C, 904L |
| Certification | FDA certificate |
