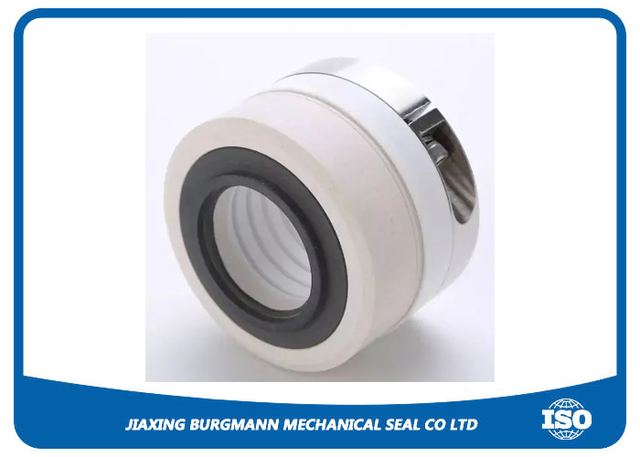

PTFE Bellows Chemical Pump Seal WB2
Model WB2
Overview
PTFE Bellows Chemical Pump Seal WB2 supplied by Jiaxing Burgmann Mechanical Seal Co., Ltd. Listed under Mechanical Seals. Key published specifications: Size 30~100mm; Pressure Up To 0.5Mpa; Temperature -10°C To +100°C; Speeds Up To 15m/s. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Size | 30~100mm |
|---|---|
| Pressure | Up To 0.5Mpa |
| Temperature | -10°C To +100°C |
| Speeds | Up To 15m/s |
| Metal Parts | SS304,SS316,904L |
| Application | Chemical Pump Seal |
| Shaft Diameter | 30~100mm |
| Sliding Velocity | 15m/s |
| Component | Materials |
| O-Ring | EPDM, NBR, AFLAS, Kalrez |
| Spring and Metal Parts | SUS304 / SUS316, Titan, 904l |
| Certification | FDA certificate |
