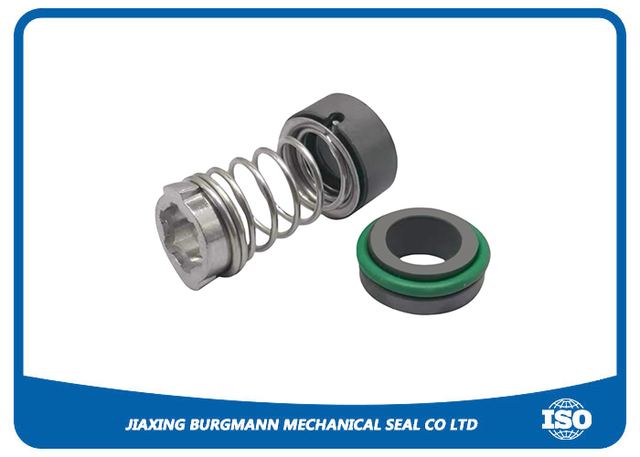

Replace Grundfos Pump Single Spring Seal 16mm
Model A/B
Overview
Replace Grundfos Pump Single Spring Seal 16mm supplied by Jiaxing Burgmann Mechanical Seal Co., Ltd. Listed under Mechanical Seals. Key published specifications: Size 16mm; Seal Faces Silicon Carbide / Carbon-Graphite; Pressure Up To 3Mpa; Temperature -10°C To +180°C. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Size | 16mm |
|---|---|
| Seal Faces | Silicon Carbide / Carbon-Graphite |
| Pressure | Up To 3Mpa |
| Temperature | -10°C To +180°C |
| Shaft Diameter | 12 & 16mm |
| Sliding Velocity | 15m/s |
| Component | Materials |
| O-Ring | EPDM, NBR, AFLAS, Kalrez, PTFE |
| Spring and Metal Parts | SUS304, SUS316, Titan, Hast C, 904L |
| Certification | FDA certificate |
| Application | replacement for Grundfos pump seal CR-4, CR-8, CR-16 |
| Material Composition | Component |
