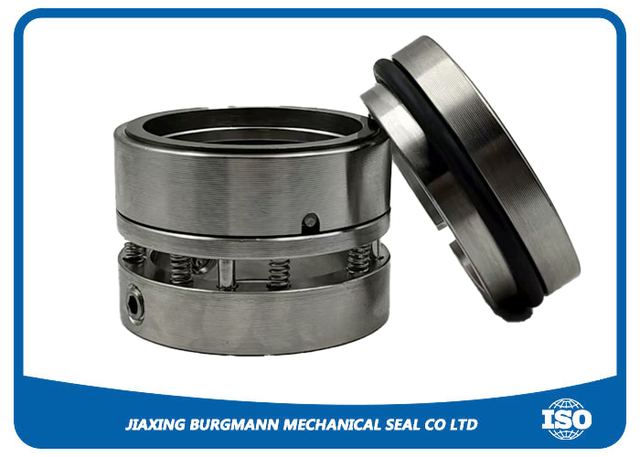

Multi-spring Mechanical Pump Seal
Model H8B
Overview
Multi-spring Mechanical Pump Seal supplied by Jiaxing Burgmann Mechanical Seal Co., Ltd. Listed under Mechanical Seals. Key published specifications: Size 24~250mm; Pressure Up To 3Mpa; Temperature -20°C To +230°C; Speeds 25m/s. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Size | 24~250mm |
|---|---|
| Pressure | Up To 3Mpa |
| Temperature | -20°C To +230°C |
| Speeds | 25m/s |
| Metal Parts | SS304,SS316,904L |
| Shaft diameter | 24~230mm |
| Slidingvelocity | 25m/s |
| Rotary Ring | Car / SIC/TC/Cer |
| O-Ring | , EPDM, NBR, AFLAS, Kalrez |
| Spring and Metal Parts | SUS304, SUS316, Titan, 904L |
| Stationary Ring | Car / SIC /TC/Cer |
| Certification | FDA certificate |
| Operating range | Shaft diameter |
| Material | Rotary Ring |
| Recommended Applications | Process industry |
