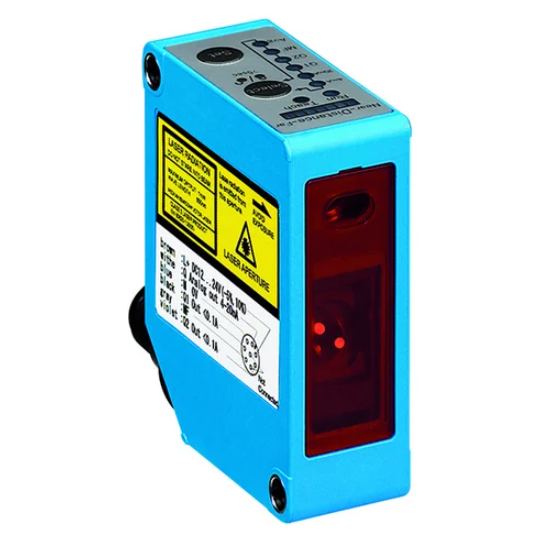

Repeat Accuracy 30 Micrometer Optical Sensor SICK OD2-P120W60I2
Model UM18-218161101
Overview
Repeat Accuracy 30 Micrometer Optical Sensor SICK OD2-P120W60I2 supplied by NEW SOURCE AUTOMATION CO.,LTD. Listed under Photoelectric Sensors. Key published specifications: Product Type Optical Laser Displacement Sensor; Series OD2 Miniature Distance Sensor; Measuring Range 60 ~ 180 Mm; Reference Distance 120 Mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Product Type | Optical Laser Displacement Sensor |
|---|---|
| Series | OD2 Miniature Distance Sensor |
| Measuring Range | 60 ~ 180 Mm |
| Reference Distance | 120 Mm |
| Weight | Approx 25g |
| Repeatability | 30 µm (under standard conditions) |
| Linearity | ± 120 µm (under standard conditions) |
| Response Time | ≥ 1 ms |
| Measuring Frequency | ≤ 2 kHz |
| Applications | Versatile Solutions for Industrial Challenges |
| Installation & Setup | Quick Integration for Immediate Results |
| Housing Material | Plastic |
| Dimensions | 20 mm x 40 mm x 15 mm |
| Connection Type | 2 m cable |
| Supply Voltage | 12–24 V DC |
| Current Consumption | ≤ 50 mA |
| Operating Temperature | -10°C to +40°C |
| Storage Temperature | -25°C to +70°C |
| Protection Rating | IP67 (IEC 60529) |
| Type | Visible red laser |
| Wavelength | 650 nm |
