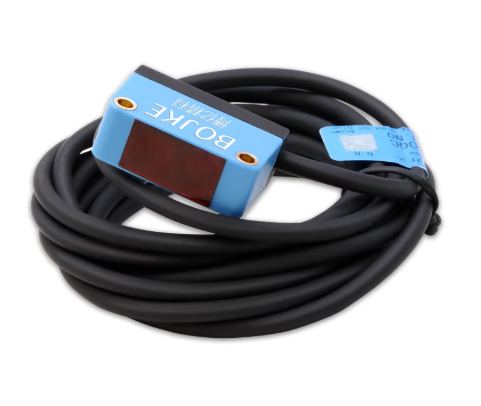

BOJKE Background Removal Photoelectric Switch Sensor BGS-500QC
Overview
BOJKE Background Removal Photoelectric Switch Sensor BGS-500QC supplied by Guangdong Boyijingke Sensing Co., Ltd. Listed under Photoelectric Sensors. Key published specifications: Theory Photoelectric Switch Sensor; Mounting Type Manual Installation; Manufacturer Part Number BGS-500QC; Type Photoelectric Sensor. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Theory | Photoelectric Switch Sensor |
|---|---|
| Mounting Type | Manual Installation |
| Manufacturer Part Number | BGS-500QC |
| Type | Photoelectric Sensor |
| Output | NPN |
| Response Time | <1ms |
| Voltage - Supply | DC 12~24V ±10% |
| Material | PC+ABS |
| Function | Detection |
| Model No | BGS-500QC |
| Detection Type | diffuse reflector, background subtraction |
| Detection Distance | 20mm-500mm |
| Light Spot Size | Ø 1 0 mm/ 3 0cm |
| Sensitivity Adjustment | knob adjustment |
| Output Type | NPN open collector |
| Switching Mode | Light.on |
| Response Frequency | 1KHz |
| Light Source | 650nm visible red light |
| Working Voltage | DC 12~24V ±10% |
| Residue Voltage (Voltage drop) | <3V |
| Max Load Current | 100mA |
| Consumption (no-load) Current | <25mA |
| Ambient Illumination | Incandescent lamp ≤ 3000Lux; Sunlight ≤ 10000Lux |
| Protection Level | IP65 |
| Indicator Light | Orange |
| Connection Type | 3 core 2 meter standard cable |
