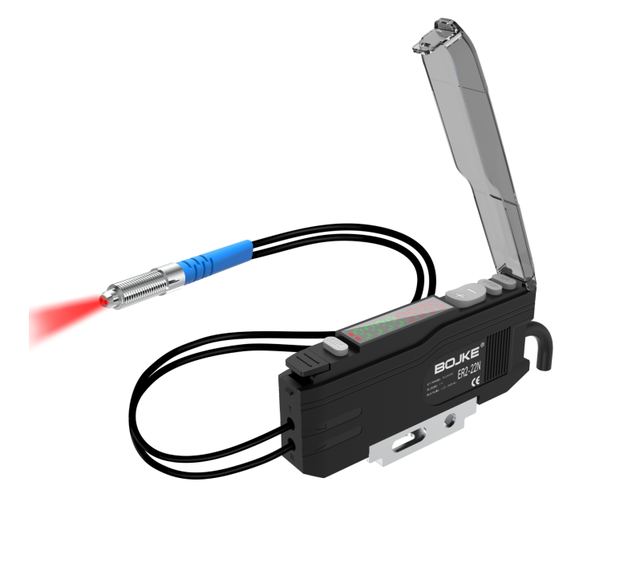

Plastic Digital Display Fiber Optic Amplifier Sensor Fast Respond
Model ER2-22N/ER2-22P
Overview
Plastic Digital Display Fiber Optic Amplifier Sensor Fast Respond supplied by Guangdong Boyijingke Sensing Co., Ltd. Listed under Photoelectric Sensors. Key published specifications: Document Optic Amplifier.pdf; Type Dual Digital Fiber Sensor; Output NPN Or PNP; Application Industry Equipment. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Document | Optic Amplifier.pdf |
|---|---|
| Type | Dual Digital Fiber Sensor |
| Output | NPN Or PNP |
| Application | Industry Equipment |
| Power Supply | 12~24 V DC |
| Housing Material | plastic |
| Operation Voltage | 12-24VDC±10% , floating(P-P < 10%) |
| Current Consumption | < 40mA |
| Light Source | Red 4-element Led |
| Detection Range | P-1 Diffuse reflection 200mm,opposite 700mm |
| Output State | press ( D/L ) 5S to switch NO/NC |
| Response time | P--1: < 100uS P--2: < 200uS |
| Ambient temperature | -25 ~ +55 ℃ , no freezing |
| Series | fiber laser sensor cable |
