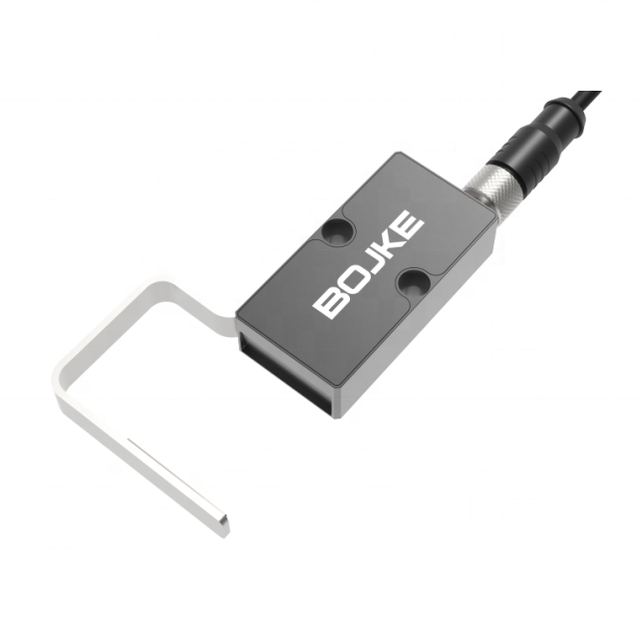

BOJKE Compact Edge Detection Position Sensor Sensing Range 0-40mm
Model BDR-24A
Overview
BOJKE Compact Edge Detection Position Sensor Sensing Range 0-40mm supplied by Guangdong Boyijingke Sensing Co., Ltd. Listed under Photoelectric Sensors. Key published specifications: Document Edge laser sensor.pdf; Theory Laser Reflection; Power Supply 12~24v DC; Detection Distance 0~40mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Document | Edge laser sensor.pdf |
|---|---|
| Theory | Laser Reflection |
| Power Supply | 12~24v DC |
| Detection Distance | 0~40mm |
| Material | Aluminum Alloy |
| Function | Detection |
| Model | BDR-24A |
| Measure range | 24mm |
| Detection distance(from workpiece) | 0 ～ 40mm |
| maximum power | 7mw |
| Light spot | 3.5x25mm |
| Temperature drift | ±0.02%F.S./ ℃ |
| RGB indicator light | Slow flashing green light (2Hz): normal operating state |
| Supply power voltage | DC 12 ～ 24V ±10% |
| Cosumption current | <100mA ( at DC 24V ) |
| Connect type | M8 4 pin connector |
| protection degree | IP67 |
| Vibration resistance | 10 ～ 55Hz amplitude 1.5mm |
| Shock resistance | about 50G ( 500 m/s2 ) |
| Protection circuit | Reverse connection protection,overcurrent protection |
| Weight | 75g |
| housing material | aluminium alloy |
| Type | Laser distance sensor, laser sensor |
| Series | Through-Beam Edge Sensor |
| Resolution | 100um |
| Response time | 400μs,4ms,8ms |
