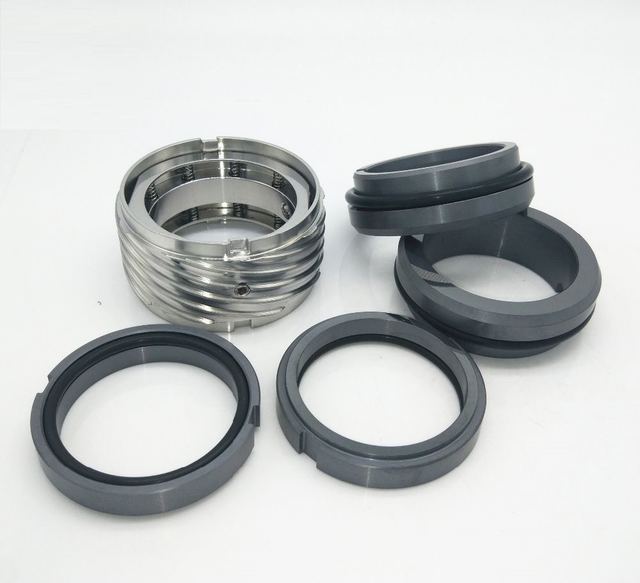

Pumping Ring Multiple Spring Mechanical Seal Pump Seal With G9 Seat
Model M74F-D
Overview
Pumping Ring Multiple Spring Mechanical Seal Pump Seal With G9 Seat supplied by Hefei Supseals International Trade Co., Ltd. Listed under Mechanical Seals. Key published specifications: Certification ISO9001; Function For Oil Pump, Water Pump; Seal Direction Single Direction, Bi-Directional; Certificate API 682, ISO 21049. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001 |
|---|---|
| Function | For Oil Pump, Water Pump |
| Seal Direction | Single Direction, Bi-Directional |
| Certificate | API 682, ISO 21049 |
| Type | For M2N |
| Seal Configuration | Single, Double, Tandem |
| Style | Mechanical Seal |
| Temperature | -20ºC to +180ºC |
| Pressure | ≤2.5MPa |
| Speed | ≤15m/s |
| Secondary Seal | NBR, EPDM, FKM, PTFE |
