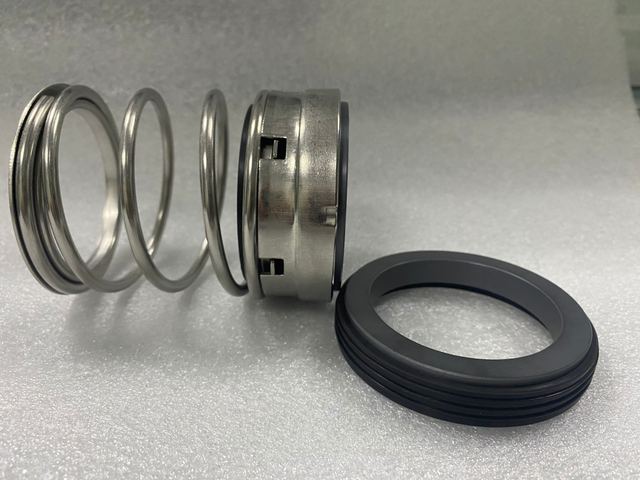

Pump Mechanical Seals (152)
Model Type 1
Overview
Pump Mechanical Seals (152), listed under Mechanical Seals by Hefei Supseals International Trade Co., Ltd in Hefei, Anhui. The listing gives certification ISO9001, function For Oil Pump, Water Pump and certificate ISO9001.
Technical specifications
| Certification | ISO9001 |
|---|---|
| Function | For Oil Pump, Water Pump |
| Certificate | ISO9001 |
| Style | Mechanical Seal |
| Temperature | -30℃ to 200℃, dependent on the elastomer |
| Pressure | Up to 14 bar |
| Speed | Up to 13 m/s |
| End play/axial float allowance | ±0.1mm |
| Size | 0.5" to 4" |
| Face | Carbon, SiC, TC |
| Seat | Ceramic, SiC, TC |
| Spring | SS304, SS316 |
| Metal parts | SS304, SS316 |
