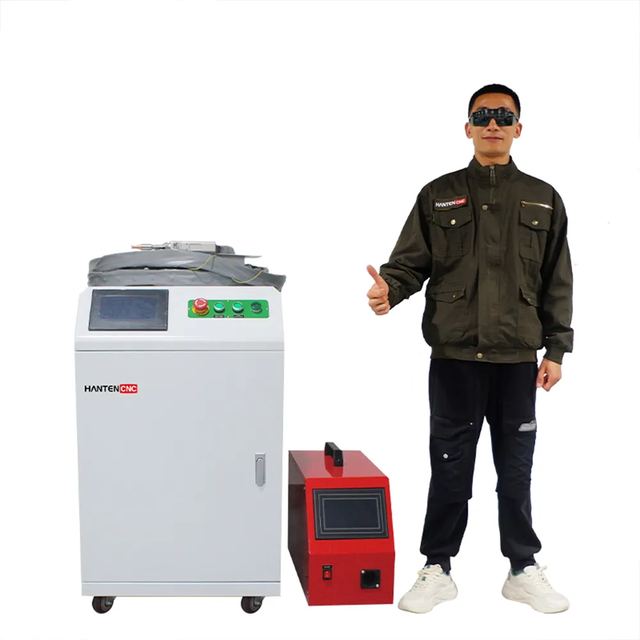

Precision-Focused Handheld Fiber Laser Welder Machine (1500W 2000W 3000W)
Model HTW1500/HTW2000/HTW3000
Overview
Precision-Focused Handheld Fiber Laser Welder Machine (1500W 2000W 3000W) supplied by HANTENCNC. Key published specifications: Laser power 1500W/2000W/3000W; Laser wavelength 1080nm; Fiber length 10M/12M/15M/Maximum20M; Operating mode Continuous Welding. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Laser power | 1500W/2000W/3000W |
|---|---|
| Laser wavelength | 1080nm |
| Fiber length | 10M/12M/15M/Maximum20M |
| Operating mode | Continuous Welding |
| Maximum Oscillation Speed | 20000mm/s |
| Operating system | Handheld Welding System |
| Humidity range Operating environment | < 70% non-condensing |
| Working voltage | 220V/1P for 1500W 380V/3P for 2000W and 3000W |
| Cooling mehod | Water Cooled |
| Welding gap requirements | ≤0.5mm |
| Welder dimensions | 1050*560*1060mm |
| Welder net weight | 165KG |
| Compare items | Traditional welding |
| Heat input to workpiece | very high |
| Deformation of workpiece, undercut | Big |
| Follow-up | Polished |
| Welding speed | Generally |
| Weld spot | Large welding spot |
| Difficulty of operation | Complex |
| Generally | Simple |
| Operator safety | unsafe |
| Environmental impact | Not environmentally friendly |
| Welding tolerance | Good |
| Swing welding | none |
| none | Have |
| Spot width adjustable | none |
| Welding quality comparison | Difference |
| Beautiful | Unsightly and expensive to polish |
| Perforation | Easy to pierce |
