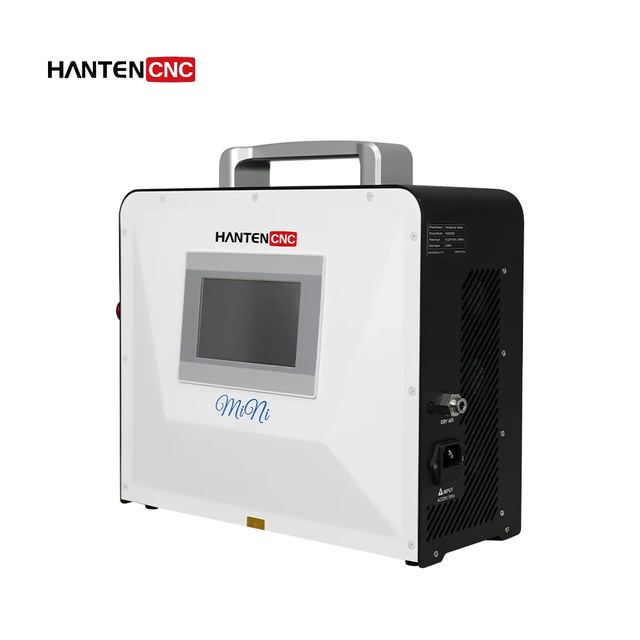

Portable QCW Laser Spot Welding Machine
Model HTW300
Overview
Portable QCW Laser Spot Welding Machine supplied by HANTENCNC. Key published specifications: Laser Type QCW Fiber Laser; Average Power 300 W; Peak Power 600 W; Wavelength 1080 ±5 nm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Laser Type | QCW Fiber Laser |
|---|---|
| Average Power | 300 W |
| Peak Power | 600 W |
| Wavelength | 1080 ±5 nm |
| Pulse Frequency | 1–5000 Hz |
| Max Single-Pulse Energy | 6 J |
| Cooling Method | Air-cooled |
| Fiber Length | 2–3 m |
| Display | 5-inch Touch Screen |
| Dimensions | 374.5 × 191 × 330 mm |
| Weight | 12 kg |
| Switches interface language (Options | Simplified Chinese/English/Other). |
