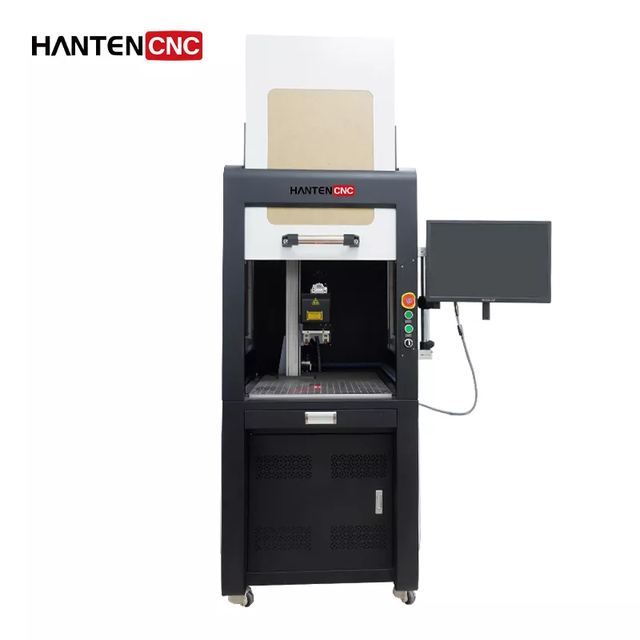

3D Desktop Fiber Laser Marking Machines
Model HTF100
Overview
3D Desktop Fiber Laser Marking Machines supplied by HANTENCNC. Key published specifications: Power Supply 110V / 220V, 50 / 60Hz; Power Consumption 700W; Output Power 100W; Galvo Scanner 3D FEELTEK FR10-F. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Power Supply | 110V / 220V, 50 / 60Hz |
|---|---|
| Power Consumption | 700W |
| Output Power | 100W |
| Galvo Scanner | 3D FEELTEK FR10-F |
| Marking Area | 100mm × 100mm to 200mm × 200mm |
| Line Width | 0.01mm to 0.1mm |
| Minimum Character Size | 0.15mm |
| Power Adjustment Range | 0–100% (gradual) |
| Marking Speed | 0–7000mm/s |
| Fiber Cable Length | 3m |
| Wavelength | 1064nm |
| Software | LenMark 3DS |
| Cooling Method | Air Cooling |
| Machine Dimensions | 1290mm × 860mm × 1800mm |
| Weight | 260kg |
