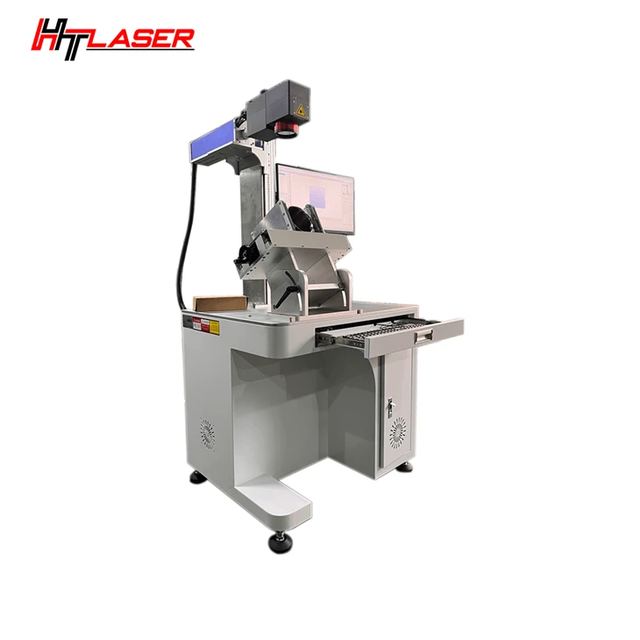

3D Fiber Laser Marking Machine
Overview
3D Fiber Laser Marking Machine supplied by Shenzhen Chinasky Laser Technology Co., Ltd. Listed under Lasers. Key published specifications: Engraving area 100x100mm-300x300mm Optional; Light wavelength 1064 nm; Engraving speed ≤7000 mm/s; Repeating frequency 1-600 kHz. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Engraving area | 100x100mm-300x300mm Optional |
|---|---|
| Light wavelength | 1064 nm |
| Engraving speed | ≤7000 mm/s |
| Repeating frequency | 1-600 kHz |
| Beam Quality | M2<1.6 |
| Minimum line width | 0.01 mm |
| Repeating precision | ±0.002mm |
| Cooling Mode | air cooling |
| Total Power Consumption | 2 kW |
| power supply | 90-260V/50Hz-60Hz single |
