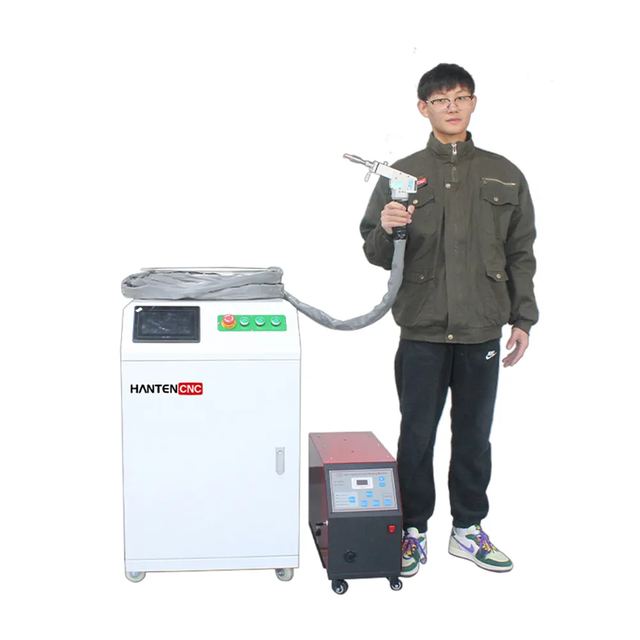

3000W 3 in 1 Laser Welding Machine
Model HT W3000
Overview
3000W 3 in 1 Laser Welding Machine supplied by HANTENCNC. Key published specifications: Laser wavelength 1080nm; Fiber length 10M/12M/15M/Maximum20M; Operating mode Continuous Welding; Maximum oscillation speed 20000mm/s. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Laser wavelength | 1080nm |
|---|---|
| Fiber length | 10M/12M/15M/Maximum20M |
| Operating mode | Continuous Welding |
| Maximum oscillation speed | 20000mm/s |
| Laser power | 3000 Watts |
| Operating system | Handheld Welding System |
| Humidity range operating environment | < 70% non-condensing |
| Cooling | Water Cooled |
| Welding gap requirements | ≤0.5mm |
| Operating Voltage | 380V, Three Phase |
| Machine dimensions | 1050*560*1060mm |
| Welder Net weight | 165KG |
