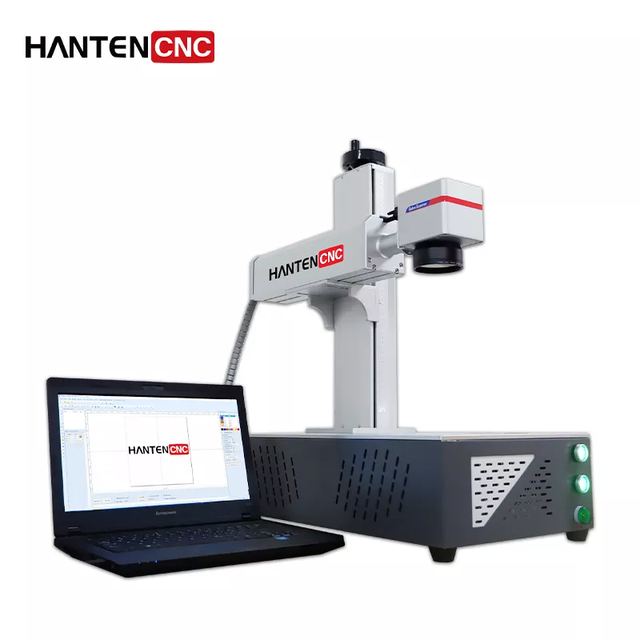

Portable Fiber Laser Marking Machine For Engraving Jewelry
Overview
Portable Fiber Laser Marking Machine For Engraving Jewelry supplied by HANTENCNC. Key published specifications: Marking Area 100*100mm-300*300mm(Option); Working voltage 0.5KW/AC220V/50Hz(option); Lifting pillar 500mm(customize); Cooling system Air Cooling. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Marking Area | 100*100mm-300*300mm(Option) |
|---|---|
| Working voltage | 0.5KW/AC220V/50Hz(option) |
| Lifting pillar | 500mm(customize) |
| Cooling system | Air Cooling |
| Working environment | 30~5°C humidity≤90% |
| Minimum character | 0.1mm |
| Minimum line width | 0.01mm |
| Repeatability accuracy | 0.003mm |
| Resolution | 0.001mm |
| Marking speed | 0-7000mm/s |
| Laser modulation frequency | 20kHz~80kHz(Option) |
| Output laser power | 20W |
| Laser wavelength | 1064nm |
