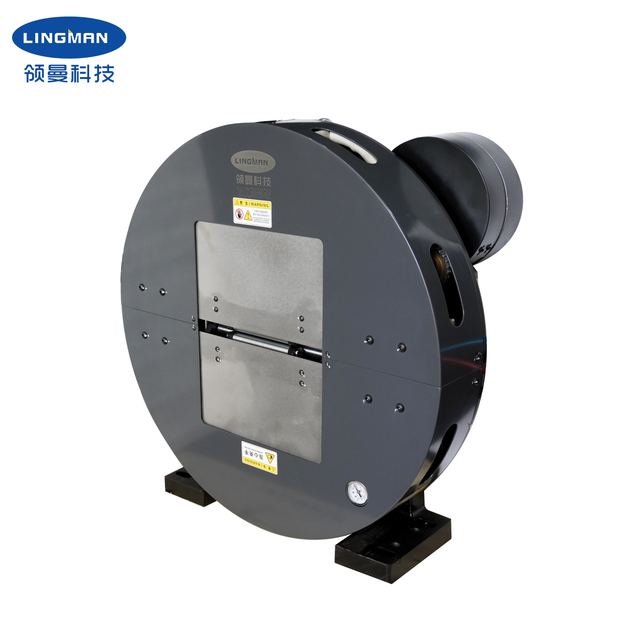

Pneumatic Laser Chuck with 245mm Diameter and 2KN Clamping Force for High Precision Pipe Cutting
Model F245JF
Overview
Pneumatic Laser Chuck with 245mm Diameter and 2KN Clamping Force for High Precision Pipe Cutting supplied by Lingman Machinery Technology (Changzhou) Co., Ltd. Listed under Chucks. Key published specifications: Jaw stroke 235mm; Maximunm clamping force 2KN; Allowable pressure 0.1-1MPa; Limit speed 200r/min. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Jaw stroke | 235mm |
|---|---|
| Maximunm clamping force | 2KN |
| Allowable pressure | 0.1-1MPa |
| Limit speed | 200r/min |
| Clamping range | 10-245mm |
| Central height | 350mm |
| Rotational inertia | 5.48Kg.m2 |
| Rotating part weight | 173kg |
| Whole unit weight | 257kg |
