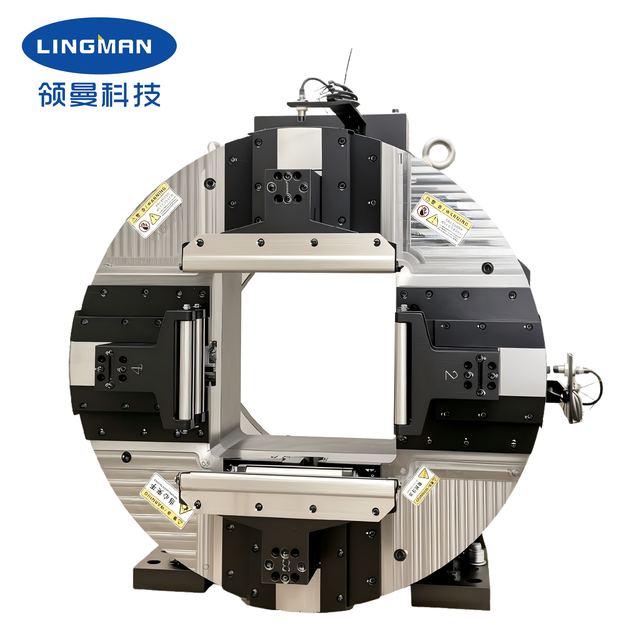

245mm Diameter Pneumatic Hollow Laser Chuck for Precision Industrial Cutting

Model F245JF

245mm Diameter Pneumatic Hollow Laser Chuck for Precision Industrial Cutting

Overview

245mm Diameter Pneumatic Hollow Laser Chuck for Precision Industrial Cutting, listed under Laser Cutting by Lingman Machinery Technology (Changzhou) Co., Ltd in Changzhou, Jiangsu. Jaw stroke 235mm, maximunm clamping force 2KN and allowable pressure 0.1-1MPa are among the specifications published.

Technical specifications

Jaw stroke235mm
Maximunm clamping force2KN
Allowable pressure0.1-1MPa
Limit speed200r/min
Clamping range10-245mm
Central height350mm
Rotational inertia5.48Kg.m2
Rotating part weight173kg
Whole unit weight257kg
