Overview

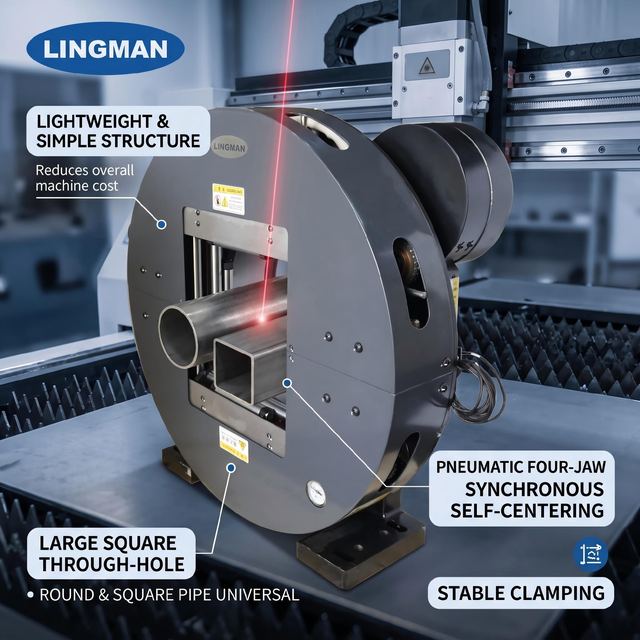

LM 245mm Diameter Pneumatic Hollow Laser Chuck for Precise Industrial Pipe Cutting supplied by Lingman Machinery Technology (Changzhou) Co., Ltd. Listed under Chucks. Key published specifications: Jaw stroke 235mm; Maximunm clamping force 2KN; Allowable pressure 0.1-1MPa; Limit speed 200r/min. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Jaw stroke	235mm
Maximunm clamping force	2KN
Allowable pressure	0.1-1MPa
Limit speed	200r/min
Clamping range	10-245mm
Central height	350mm
Rotational inertia	5.48Kg.m2
Rotating part weight	173kg
Whole unit weight	257kg
