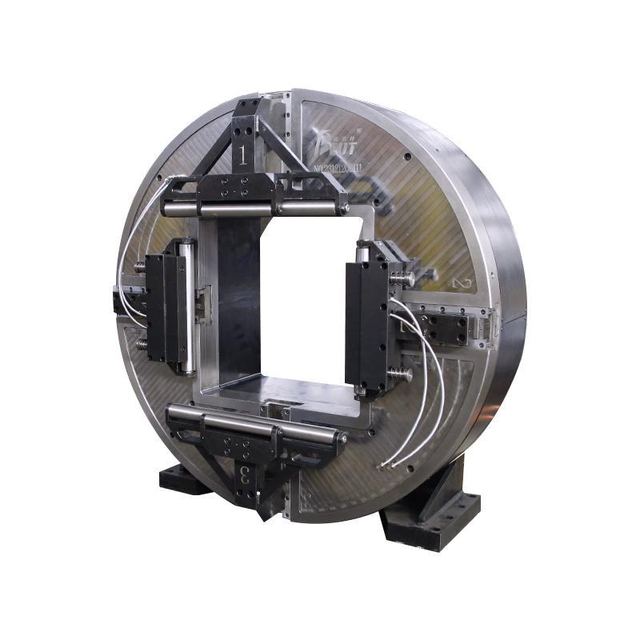

Heavy Duty Pneumatic 640mm Laser Chuck for High Precision Fiber Pipe Cutting
Model F640DF
Overview
Heavy Duty Pneumatic 640mm Laser Chuck for High Precision Fiber Pipe Cutting supplied by Lingman Machinery Technology (Changzhou) Co., Ltd. Listed under Chucks. Key published specifications: Jaw stroke 575mm; Maximum clamping force 25KN; Alloable pressure 0.3-0.9MPa; Limit speed 25r/min. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Jaw stroke | 575mm |
|---|---|
| Maximum clamping force | 25KN |
| Alloable pressure | 0.3-0.9MPa |
| Limit speed | 25r/min |
| Clamping range | 44-620mm |
| Central height | 880mm |
| Rotational inertia | 535kg.㎡ |
| Rotating part weight | 1650kg |
| Whole unit weight | 3500kg |
| Allowable Pressure | 0.3-0.9MPa |
