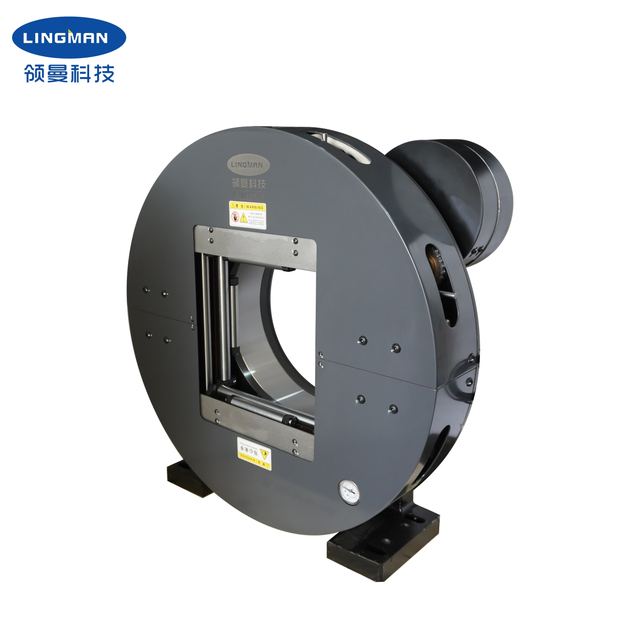

Lingman 245mm Hollow Size Pneumatic Laser Chuck For Laser Pipe Cutting Machine
Model F245JF
Overview
Lingman 245mm Hollow Size Pneumatic Laser Chuck For Laser Pipe Cutting Machine, listed by Lingman Machinery Technology (Changzhou) Co., Ltd in Changzhou, Jiangsu. Published figures include jaw stroke 235mm, maximunm clamping force 2KN and allowable pressure 0.1-1MPa.
Technical specifications
| Jaw stroke | 235mm |
|---|---|
| Maximunm clamping force | 2KN |
| Allowable pressure | 0.1-1MPa |
| Limit speed | 200r/min |
| Clamping range | 10-245mm |
| Central height | 350mm |
| Rotational inertia | 5.48Kg.m2 |
| Rotating part weight | 173kg |
| Whole unit weight | 257kg |
