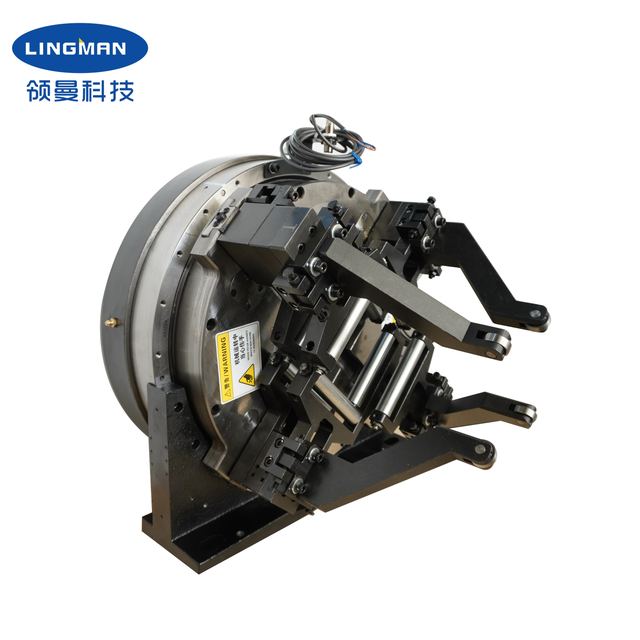

Pneumatic Laser Chuck with 170mm Bevel Cutting Chuck for High Precision Fiber Pipe Cutting
Model F175C
Overview
Pneumatic Laser Chuck with 170mm Bevel Cutting Chuck for High Precision Fiber Pipe Cutting supplied by Lingman Machinery Technology (Changzhou) Co., Ltd. Listed under Chucks. Key published specifications: Jaw stroke 170mm; Maximum clamping force 1.2KN; Alloable pressure 0.3-0.9MPa; Limit speed 200/min. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Jaw stroke | 170mm |
|---|---|
| Maximum clamping force | 1.2KN |
| Alloable pressure | 0.3-0.9MPa |
| Limit speed | 200/min |
| Clamping range | 5-175mm |
| Central height | 260mm |
| Rotational inertia | 4.2kg.㎡ |
| Rotating part weight | 130kg |
| Whole unit weight | 234kg |
| Allowable Pressure | 0.3-0.9MPa |
