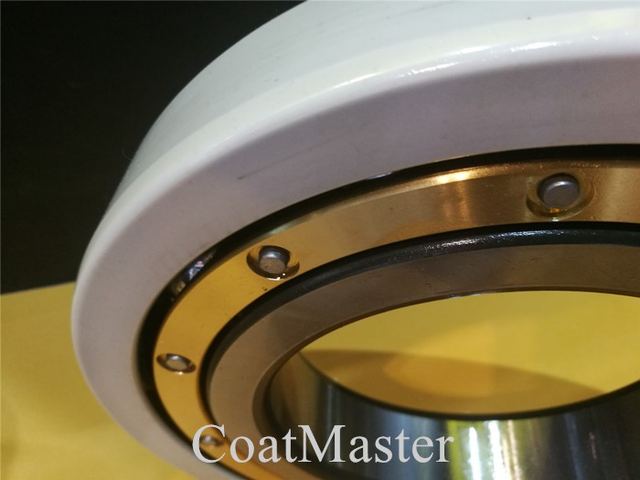

Optimized internal design 6313 insulated bearing For Modern gearbox requirements
Overview
Optimized internal design 6313 insulated bearing For Modern gearbox requirements, listed by CoatMaster Bearings Liaocheng ZhuoYi Bearing Co.,Ltd in Liaocheng, Shandong. Designation 6313 insulated bearing, electrical resistance Voltages Up To 3000 V DC and cage Brass are among the specifications published.
Technical specifications
| Designation | 6313 insulated bearing |
|---|---|
| Electrical Resistance | Voltages Up To 3000 V DC |
| Cage | Brass |
| Cleance | C5 |
| Dimension | 65×140×33 mm |
| Weight | 2.1kg |
| Application | Electric Traction Motors |
| Electrically insulated Rolling Bearings | 6313 C3VL0241 |
| Principal dimensions | 65×140×33mm |
| Basic dynamic load rating-C | 97.5kN |
| Basic static load rating-Co | 60kN |
| Fatigue load limit-Pu | 2.5 kN |
| Reference speed | 10000r/min |
| Limiting speed | 6700 r/min |
