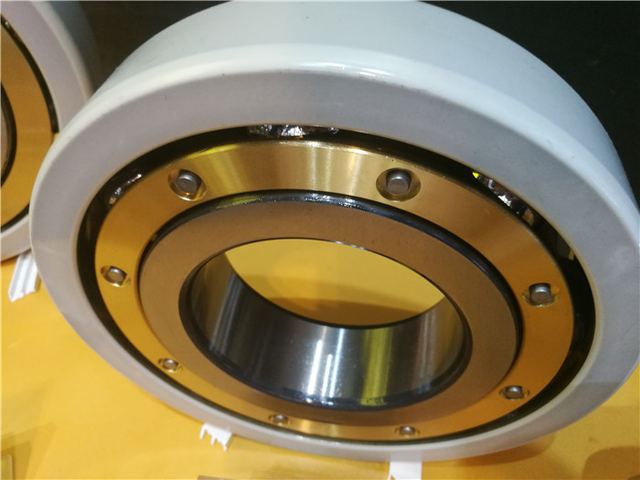

6316 insulated bearing for higher output shaft speeds
Overview
6316 insulated bearing for higher output shaft speeds supplied by CoatMaster Bearings Liaocheng ZhuoYi Bearing Co.,Ltd. Key published specifications: Designation 6316/C3VL0241; Electrical Resistance Voltages Up To 3000 V DC; Cage Brass; Cleance C3. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Designation | 6316/C3VL0241 |
|---|---|
| Electrical Resistance | Voltages Up To 3000 V DC |
| Cage | Brass |
| Cleance | C3 |
| Dimension | 80×170×39 mm |
| Weight | 3.6 kg |
| Application | Electric Traction Motors |
| Design of Insulated bearing | 6316/C3VL0241 |
| Principal dimensions | 80×170×39mm |
| Basic dynamic load rating-C | 124kN |
| Basic static load rating-Co | 86.5kN |
| Fatigue load limit-Pu | 3.25 kN |
| Reference speed | 8500 r/min |
| Limiting speed | 5300 r/min |
