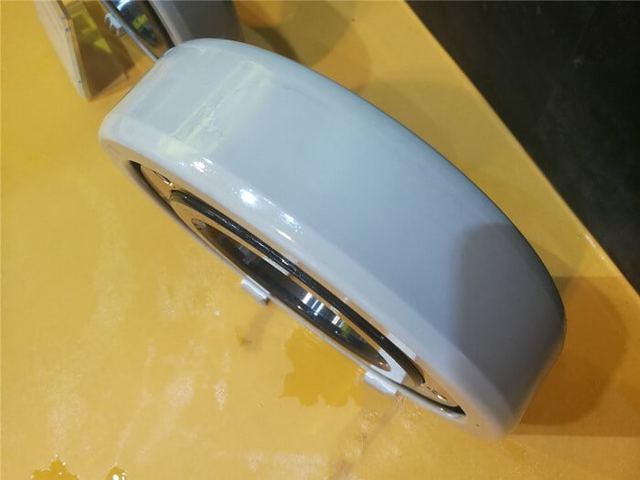

6322 insulated bearing for drive end motor
Model 6322 M/C3VL0241
Overview
6322 insulated bearing for drive end motor supplied by CoatMaster Bearings Liaocheng ZhuoYi Bearing Co.,Ltd. Key published specifications: Certification ISO9001; Designation 6322/C3VL0241; Electrical Resistance Voltages Up To 3000 V DC; Cage Brass. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001 |
|---|---|
| Designation | 6322/C3VL0241 |
| Electrical Resistance | Voltages Up To 3000 V DC |
| Cage | Brass |
| Cleance | C3 |
| Dimension | 110×240×50 mm |
| Weight | 9.7 kg |
| Application | Electric Traction Motors |
| Principal dimensions | 110×240×50mm |
| Basic dynamic load rating-C | 203kN |
| Basic static load rating-Co | 180kN |
| Fatigue load limit-Pu | 5.7 kN |
| Reference speed | 6000 r/min |
| Limiting speed | 3800 r/min |
