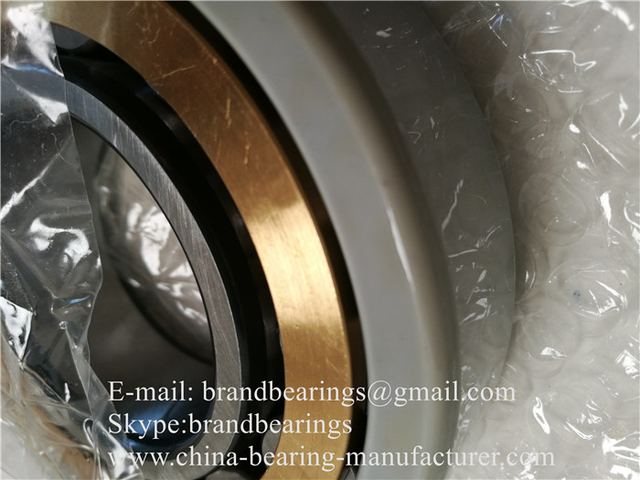

High Quantity CoatMaster 6212 M/C4VL0241 Electric Insulated bearing replace SKF
Overview
High Quantity CoatMaster 6212 M/C4VL0241 Electric Insulated bearing replace SKF supplied by CoatMaster Bearings Liaocheng ZhuoYi Bearing Co.,Ltd. Key published specifications: Designation 6212 M/C4VL0241; Electrical Resistance Voltages Up To 3000 V DC; Cage Brass; Cleance C4. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Designation | 6212 M/C4VL0241 |
|---|---|
| Electrical Resistance | Voltages Up To 3000 V DC |
| Cage | Brass |
| Cleance | C4 |
| Dimension | 60×96×18 mm |
| Weight | 0.5 kg |
| Application | Electric Traction Motors |
| Basic dynamic load rating-C | 55.3kN |
| Basic static load rating-Co | 36kN |
| Fatigue load limit-Pu | 1.53 kN |
| Reference speed | 13000 r/min |
| Limiting speed | 11000 r/min |
